Analysis, Calculating the DFT

The DFT can be calculated in three completely different ways. First, the
problem can be approached as a set of *simultaneous equations*. This method is
useful for understanding the DFT, but it is too inefficient to be of practical use.
The second method brings in an idea from the last chapter: *correlation.* This is
based on detecting a known waveform in another signal. The third method,
called the Fast Fourier Transform (FFT), is an ingenious algorithm that
decomposes a DFT with *N* points, into *N* DFTs each with a single point. The
FFT is typically hundreds of times faster than the other methods. The first two
methods are discussed here, while the FFT is the topic of Chapter 12. It is
important to remember that all three of these methods produce an identical
output. Which should you use? In actual practice, *correlation* is the preferred
technique if the DFT has less than about 32 points, otherwise the *FFT* is used.

DFT by Simultaneous Equations

Think about the DFT calculation in the following way. You are given *N* values
from the time domain, and asked to calculate the *N* values of the frequency
domain (ignoring the two frequency domain values that you know must be
zero). Basic algebra provides the answer: to solve for *N* unknowns, you must
be able to write *N* linearly independent equations. To do this, take the first
sample from each sinusoid and add them together. The sum must be equal to
the first sample in the time domain signal, thus providing the first equation.
Likewise, an equation can be written for each of the remaining points in the
time domain signal, resulting in the required *N* equations. The solution can then
be found by using established methods for solving simultaneous equations, such
as Gauss Elimination. Unfortunately, this method requires a tremendous number
of calculations, and is virtually never used in DSP. However, it is important for
another reason, it shows *why* it is possible to decompose a signal into sinusoids,
how *many* sinusoids are needed, and that the basis functions must be linearly
independent (more about this shortly).

DFT by Correlation

Let's move on to a better way, the* standard way* of calculating the DFT. An
example will show how this method works. Suppose we are trying to calculate
the DFT of a 64 point signal. This means we need to calculate the 33 points in
the real part, and the 33 points in the imaginary part of the frequency domain.
In this example we will only show how to calculate a single sample, *ImX*[3],
i.e., the amplitude of the sine wave that makes three complete cycles between
point 0 and point 63. All of the other frequency domain values are calculated
in a similar manner.

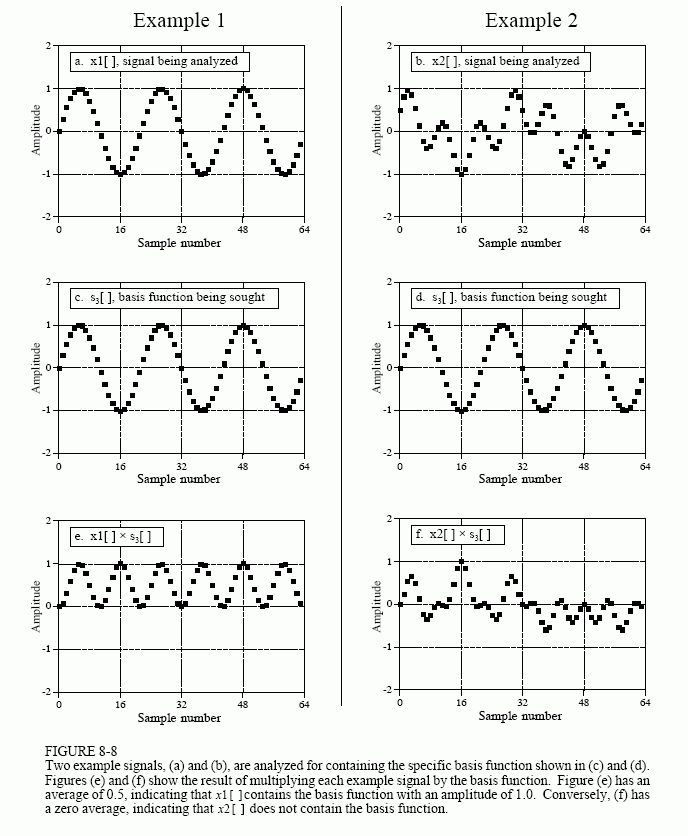

Figure 8-8 illustrates using correlation to calculate *ImX*[3]. Figures (a) and (b)
show two example time domain signals, called: *x*1[ ] and *x*2[ ], respectively.
The first signal, *x*1[ ], is composed of nothing but a sine wave that makes three
cycles between points 0 and 63. In contrast, *x*2[ ] is composed of several sine
and cosine waves, *none* of which make three cycles between points 0 and 63.
These two signals illustrate what the algorithm for calculating *ImX*[3] must do.
When fed *x*1[ ], the algorithm must produce a value of 32, the amplitude of the
sine wave present in the signal (modified by the scaling factors of Eq. 8-3). In
comparison, when the algorithm is fed the other signal, *x*2[ ], a value of zero
must be produced, indicating that this particular sine wave is not present in this
signal.

The concept of correlation was introduced in Chapter 7. Briefly, to detect a known waveform contained in another signal, multiply the two and add the points in the resulting product. The single number that results from this procedure is a measure of how similar the two signals are. Figure 8-8 illustrates this approach. Figures (c) and (d) both display the signal we are looking for, a sine wave that makes 3 cycles between samples 0 and 63. Figure (e) shows the result of multiplying (a) and (c). Likewise, (f) shows the result of multiplying (b) and (d). The sum of all the points in (e) is 32, while the sum of all the points in (f) is zero, showing we have found the desired algorithm.

The other samples in the frequency domain are calculated in the same way.

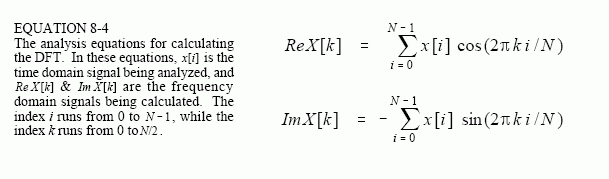

This procedure is formalized in the *analysis equation*, the mathematical way to
calculate the frequency domain from the time domain:

In words, each sample in the frequency domain is found by multiplying the time domain signal by the sine or cosine wave being looked for, and adding the resulting points. If someone asks you what you are doing, say with confidence: "I am correlating the input signal with each basis function." Table 8-2 shows a computer program for calculating the DFT in this way.

The analysis equation does *not* require special handling of the first and last
points, as did the synthesis equation. There is, however, a negative sign in the
imaginary part in Eq. 8-4. Just as before, this negative sign makes the *real DFT*
consistent with the *complex DFT*, and is not always included.

In order for this correlation algorithm to work, the basis functions must have an
interesting property: each of them must be completely *uncorrelated* with all of
the others. This means that if you multiply any two of the basis functions, the
sum of the resulting points will be equal to zero. Basis functions that have this
property are called orthognal. Many other

orthognal basis functions exist, including: square waves, triangle waves,
impulses, etc. Signals can be decomposed into these other orthognal basis
functions using correlation, just as done here with sinusoids. This is not to
suggest that this is *useful*, only that it is *possible*.

As previously shown in Table 8-1, the *Inverse DFT* has two ways to be
implemented in a computer program. This difference involves *swapping* the
inner and outer loops during the synthesis. While this does not change the
output of the program, it makes a difference in how you *view* what is being
done. The *DFT* program in Table 8-2 can also be changed in this fashion, by
swapping the inner and outer loops in lines 310 to 380. Just as before, the
output of the program is the same, but the way you *think* about the calculation
is different. (These two different ways of viewing the DFT and inverse DFT
could be described as "input side" and "output side" algorithms, just as for
convolution).

As the program in Table 8-2 is written, it describes how an individual sample
in the frequency domain is affected by all of the samples in the time domain.
That is, the program calculates each of the values in the frequency domain in
succession, not as a group. When the inner and outer loops are exchanged, the
program loops through each sample in the time domain, calculating the
contribution of that point to the frequency domain. The overall frequency
domain is found by adding the contributions from the individual time domain
points. This brings up our next question: what kind of contribution does an
individual sample in the time domain provide to the frequency domain? The
answer is contained in an interesting aspect of the Fourier domain called *duality*.
