Spatial Resolution

Suppose we want to compare two imaging systems, with the goal of determining
which has the best spatial resolution. In other words, we want to know which
system can detect the smallest object. To simplify things, we would like the
answer to be a *single number* for each system. This allows a direct comparison
upon which to base design decisions. Unfortunately, a single parameter is not
always sufficient to characterize all the subtle aspects of imaging. This is
complicated by the fact that spatial resolution is limited by two distinct but
interrelated effects: *sample spacing* and *sampling aperture size*. This section
contains two main topics: (1) how a single parameter can best be used to
characterize spatial resolution, and (2) the relationship between sample spacing
and sampling aperture size.

Figure 25-1a shows profiles from three circularly symmetric PSFs: the pillbox, the Gaussian, and the exponential. These are representative of the PSFs commonly found in imaging systems. As described in the last chapter, the pillbox can result from an improperly focused lens system. Likewise, the Gaussian is formed when random errors are combined, such as viewing stars through a turbulent atmosphere. An exponential PSF is generated when electrons or x-rays strike a phosphor layer and are converted into

light. This is used in radiation detectors, night vision light amplifiers, and CRT displays. The exact shape of these three PSFs is not important for this discussion, only that they broadly represent the PSFs seen in real world applications.

The PSF contains complete information about the spatial resolution. To express
the spatial resolution by a single number, we can ignore the *shape* of the PSF
and simply measure its *width*. The most common way to specify this is by the
Full-Width-at-Half-Maximum (FWHM) value. For example, all the PSFs in (a)
have an FWHM of 1 unit.

Unfortunately, this method has two significant drawbacks. First, it does not match other measures of spatial resolution, including the subjective judgement of observers viewing the images. Second, it is usually very difficult to directly measure the PSF. Imagine feeding an impulse into an imaging system; that is, taking an image of a very small white dot on a black background. By definition, the acquired image will be the PSF of the system. The problem is, the measured PSF will only contain a few pixels, and its contrast will be low. Unless you are very careful, random noise will swamp the measurement. For instance, imagine that the impulse image is a 512×512 array of all zeros except for a single pixel having a value of 255. Now compare this to a normal image where all of the 512×512 pixels have an average value of about 128. In loose terms, the signal in the impulse image is about 100,000 times weaker than a normal image. No wonder the signal-to-noise ratio will be bad; there's hardly any signal!

A basic theme throughout this book is that signals should be understood in the
domain where the information is encoded. For instance, audio signals should
be dealt with in the frequency domain, while image signals should be handled
in the spatial domain. In spite of this, one way to measure image resolution is
by looking at the *frequency response*. This goes against the fundamental
philosophy of this book; however, it is a common method and you need to
become familiar with it.

Taking the two-dimensional Fourier transform of the PSF provides the two-dimensional frequency response. If the PSF is circularly symmetric, its
frequency response will also be circularly symmetric. In this case, complete
information about the frequency response is contained in its profile. That is,
after calculating the frequency domain via the FFT method, columns 0 to *N*/2
in row 0 are all that is needed. In imaging jargon, this display of the frequency
response is called the Modulation Transfer Function (MTF). Figure 25-1b
shows the MTFs for the three PSFs in (a). In cases where the PSF is not
circularly symmetric, the entire two-dimensional frequency response contains
information. However, it is usually sufficient to know the MTF curves in the
vertical and horizontal directions (i.e., columns 0 to *N*/2 in row 0, and rows 0
to *N*/2 in column 0). Take note: this procedure of extracting a row or column
from the two-dimensional frequency spectrum is *not* equivalent to taking the
one-dimensional FFT of the profiles shown in (a). We will come back to this
issue shortly. As shown in Fig. 25-1, similar values of FWHM do not
correspond to similar MTF curves.

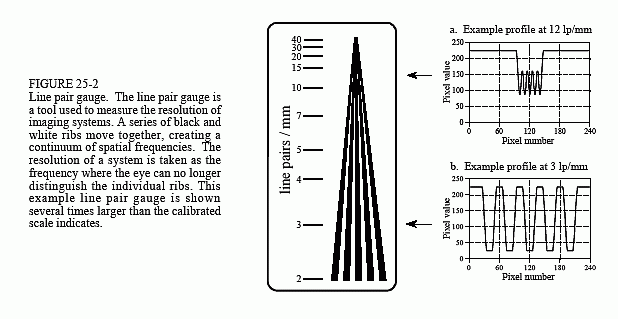

Figure 25-2 shows a line pair gauge, a device used to measure image resolution via the MTF. Line pair gauges come in different forms depending on the particular application. For example, the black and white pattern shown in this figure could be directly used to test video cameras. For an x-ray imaging system, the ribs might be made from lead, with an x-ray transparent material between. The key feature is that the black and white lines have a closer spacing toward one end. When an image is taken of a line pair gauge, the lines at the closely spaced end will be blurred together, while at the other end they will be distinct. Somewhere in the middle the lines will be just barely separable. An observer looks at the image, identifies this location, and reads the corresponding resolution on the calibrated scale.

The *way* that the ribs blur together is important in understanding the limitations
of this measurement. Imagine acquiring an image of the line pair gauge in Fig.
25-2. Figures (a) and (b) show examples of the profiles at low and high spatial
frequencies. At the low frequency, shown in (b), the curve is flat on the top and
bottom, but the edges are blurred, At the higher spatial frequency, (a), the
*amplitude* of the modulation has been reduced. This is exactly what the MTF
curve in Fig. 25-1b describes: higher spatial frequencies are reduced in
amplitude. The individual ribs will be distinguishable in the image as long as
the amplitude is greater than about 3% to 10% of the original height. This is
related to the eye's ability to distinguish the low contrast difference between the
peaks and valleys in the presence of image noise.

A strong advantage of the line pair gauge measurement is that it is simple and fast. The strongest disadvantage is that it relies on the human eye, and therefore has a certain subjective component. Even if the entire MTF curve is measured, the most common way to express the system resolution is to quote the frequency where the MTF is reduced to either 3%, 5% or 10%. Unfortunately, you will not always be told which of these values is being used; product data sheets frequently use vague terms such as "limiting resolution." Since manufacturers like their specifications to be as good as possible (regardless of what the device actually does), be safe and interpret these ambiguous terms to mean 3% on the MTF curve.

A subtle point to notice is that the MTF is defined in terms of *sine* waves, while
the line pair gauge uses *square* waves. That is, the ribs are uniformly dark
regions separated by uniformly light regions. This is done for manufacturing
convenience; it is very difficult to make lines that have a sinusoidally varying
darkness. What are the consequences of using a square wave to measure the
MTF? At high spatial frequencies, all frequency components but the
fundamental of the square wave have been removed. This causes the
modulation to appear sinusoidal, such as is shown in Fig. 25-2a. At low
frequencies, such as shown in Fig. 25-2b, the wave appears square. The
fundamental sine wave contained in a square wave has an amplitude of 4/π = 1.27 times the amplitude of the square wave (see Table 13-10). The
result: the line pair gauge provides a slight overestimate of the true resolution
of the system, by starting with an effective amplitude of more than pure black
to pure white. Interesting, but almost always ignored.

Since square waves and sine waves are used interchangeably to measure the
MTF, a special terminology has arisen. Instead of the word "cycle," those in
imaging use the term line pair (a dark line next to a light line). For example,
a spatial frequency would be referred to as *25 line pairs per millimeter*, instead
of *25 cycles per millimeter*.

The width of the PSF doesn't track well with human perception and is difficult
to measure. The MTF methods are in the *wrong domain* for understanding how
resolution affects the encoded information. Is there a more favorable
alternative? The answer is yes, the line spread function (LSF) and the edge

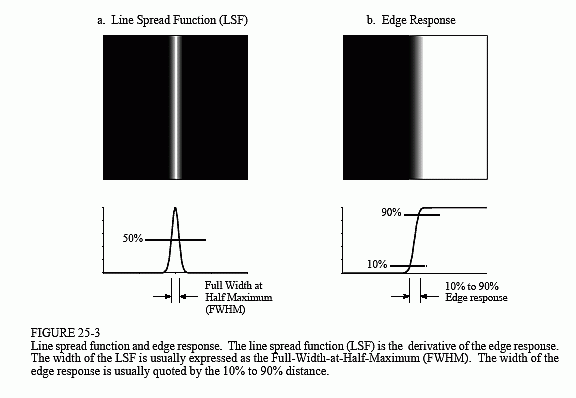

response. As shown in Fig. 25-3, the line spread

function is the response of the system to a thin line across the image. Similarly, the edge response is how the system responds to a sharp straight discontinuity (an edge). Since a line is the derivative (or first difference) of an edge, the LSF is the derivative (or first difference) of the edge response. The single parameter measurement used here is the distance required for the edge response to rise from 10% to 90%.

There are many advantages to using the edge response for measuring resolution.
First, the measurement is in the same form as the image information is encoded.
In fact, the main reason for wanting to know the resolution of a system is to
understand how the edges in an image are *blurred*. The second advantage is that
the edge response is simple to measure because edges are easy to generate in
images. If needed, the LSF can easily be found by taking the first difference of
the edge response.

The third advantage is that all common edges responses have a similar shape, even though they may originate from drastically different PSFs. This is shown in Fig. 25-4a, where the edge responses of the pillbox, Gaussian, and exponential PSFs are displayed. Since the shapes are similar, the 10%-90% distance is an excellent single parameter measure of resolution. The fourth advantage is that the MTF can be directly found by taking the one-dimensional FFT of the LSF (unlike the PSF to MTF calculation that must use a two-dimensional Fourier transform). Figure 25-4b shows the MTFs corresponding to the edge responses of (a). In other words, the curves in (a) are converted into the curves in (b) by taking the first difference (to find the LSF), and then taking the FFT.

The fifth advantage is that similar edge responses have similar MTF curves, as

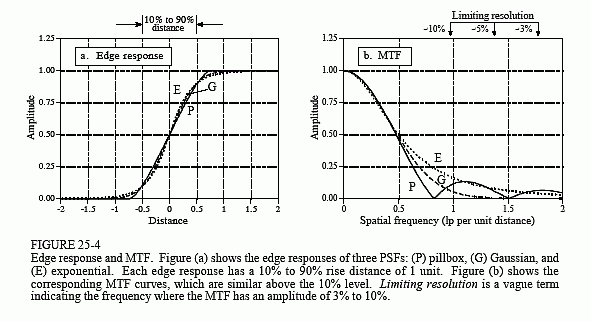

shown in Figs. 25-4 (a) and (b). This allows us to easily convert between the
two measurements. In particular, a system that has a 10%-90% edge response
of *x* distance, has a limiting resolution (10% contrast) of about 1 line pair per
*x* distance. The units of the "distance" will depend on the type of system being
dealt with. For example, consider three different imaging systems that have
10%-90% edge responses of 0.05 mm, 0.2 milliradian and 3.3 pixels. The 10%
contrast level on the corresponding MTF curves will occur at about: 20 lp/mm,
5 lp/milliradian and 0.33 lp/pixel, respectively.

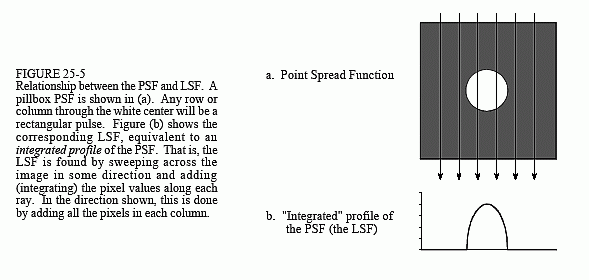

Figure 25-5 illustrates the mathematical relationship between the PSF and the
LSF. Figure (a) shows a pillbox PSF, a circular area of value 1, displayed as
white, surrounded by a region of all zeros, displayed as gray. A profile of the
PSF (i.e., the pixel values along a line drawn across the center of the image) will
be a rectangular pulse. Figure (b) shows the corresponding LSF. As shown,
the LSF is mathematically equal to the *integrated profile* of the PSF. This is
found by sweeping across the image in some direction, as illustrated by the rays
(arrows). Each value in the integrated profile is the *sum* of the pixel values
along the corresponding ray.

In this example where the rays are vertical, each point in the integrated profile
is found by adding all the pixel values in each column. This corresponds to the
LSF of a line that is *vertical* in the image. The LSF of a line that is *horizontal*
in the image is found by summing all of the pixel values in each *row*. For
continuous images these concepts are the same, but the summations are replaced
by integrals.

As shown in this example, the LSF can be directly calculated from the PSF.
However, the PSF cannot always be calculated from the LSF. This is because
the PSF contains information about the spatial resolution in *all directions*, while
the LSF is limited to only one specific direction. A system

has only one PSF, but an infinite number of LSFs, one for each angle. For
example, imagine a system that has an oblong PSF. This makes the spatial
resolution different in the vertical and horizontal directions, resulting in the LSF
being different in these directions. Measuring the LSF at a single angle does
not provide enough information to calculate the complete PSF except in the
special instance where the PSF is circularly symmetric. Multiple LSF
measurements at various angles make it possible to calculate a non-circular
PSF; however, the mathematics is quite involved and usually not worth the
effort. In fact, the problem of calculating the PSF from a number of LSF
measurements is exactly the same problem faced in *computed tomography*,
discussed later in this chapter.

As a practical matter, the LSF and the PSF are not dramatically different for most imaging systems, and it is very common to see one used as an approximation for the other. This is even more justifiable considering that there are two common cases where they are identical: the rectangular PSF has a rectangular LSF (with the same widths), and the Gaussian PSF has a Gaussian LSF (with the same standard deviations).

These concepts can be summarized into two skills: how to *evaluate* a resolution
specification presented to you, and how to *measure* a resolution specification
of your own. Suppose you come across an advertisement stating: "This system
will resolve 40 line pairs per millimeter." You should interpret this to mean:
"A sinusoid of 40 lp/mm will have its amplitude reduced to 3%-10% of its true
value, and will be just barely visible in the image." You should also do the
mental calculation that 40 lp/mm @ 10% contrast is equal to a 10%-90% edge
response of 1/(40 lp/mm) = 0.025 mm. If the MTF specification is for a 3%
contrast level, the edge response will be about 1.5 to 2 times wider.

When you measure the spatial resolution of an imaging system, the steps are carried out in reverse. Place a sharp edge in the image, and measure the resulting edge response. The 10%-90% distance of this curve is the best single parameter measurement of the system's resolution. To keep your boss and the marketing people happy, take the first difference of the edge response to find the LSF, and then use the FFT to find the MTF.
