Designing the Filter

You must select four parameters to design a Chebyshev filter: (1) a high-pass
or low-pass response, (2) the cutoff frequency, (3) the percent ripple in the
passband, and (4) the number of poles. Just what is a *pole*? Here are two
answers. If you don't like one, maybe the other will help:

Answer 1- The Laplace transform and z-transform are mathematical ways of
breaking an impulse response into sinusoids and decaying exponentials. This
is done by expressing the system's characteristics as one complex polynomial
divided by another complex polynomial. The roots of the numerator are called
*zeros*, while the roots of the denominator are called *poles*. Since poles and zeros
can be complex numbers, it is common to say they have a "location" in the
complex plane. Elaborate systems have more poles and zeros than simple ones.
Recursive filters are designed by first selecting the location of the poles and
zeros, and then finding the appropriate recursion coefficients (or analog
components). For example, Butterworth filters have poles that lie on a *circle* in
the complex plane, while in a Chebyshev filter they lie on an *ellipse*. This is the
topic of Chapters 32 and 33.

Answer 2- Poles are containers filled with magic powder. The more poles in a filter, the better the filter works.

Kidding aside, the point is that you can use these filters very effectively without knowing the nasty mathematics behind them. Filter design is a specialty. In actual practice, more engineers, scientists and programmers think in terms of answer 2, than answer 1.

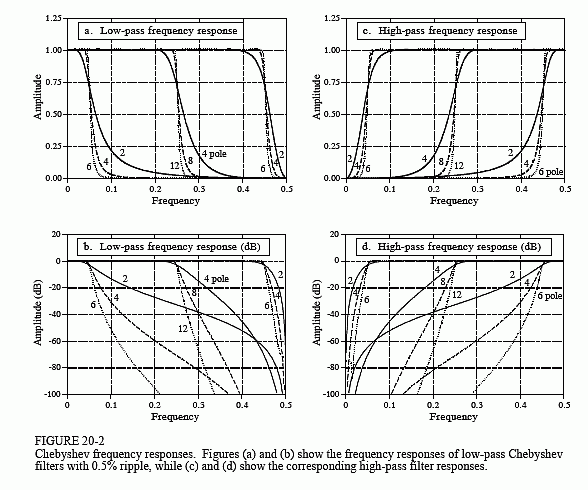

Figure 20-2 shows the frequency response of several Chebyshev filters with
0.5% ripple. For the method used here, the number of poles must be *even*. The
cutoff frequency of each filter is measured where the amplitude crosses 0.707
(-3dB). Filters with a cutoff frequency near 0 or 0.5 have a sharper roll-off than
filters in the center of the frequency range. For example, a two pole filter at *f*_{C} = 0.05 has about the same roll-off as a four pole filter at *f*_{C} = 0.25. This is fortunate; fewer poles can be used near 0 and 0.5 because of round-off noise.
More about this later.

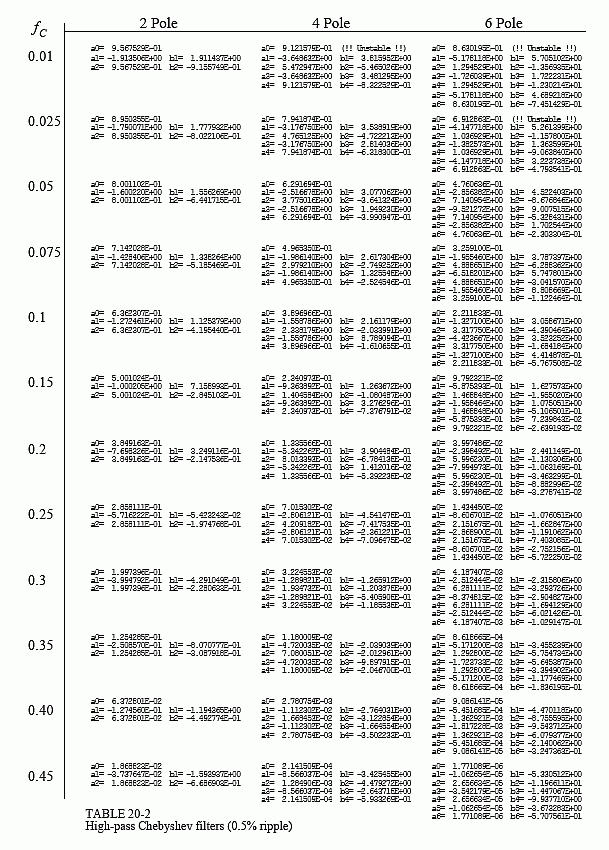

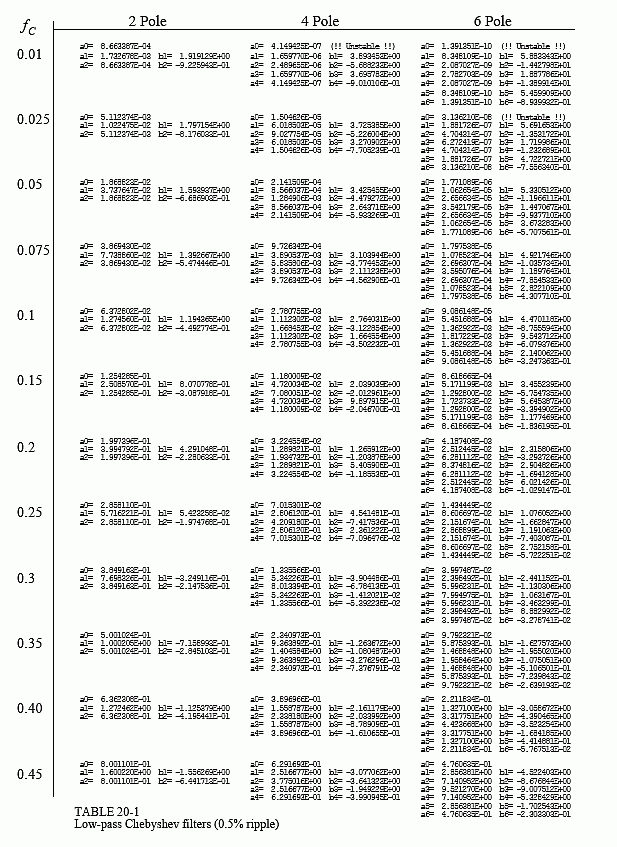

There are two ways of finding the recursion coefficients without using the z-transform. First, the cowards way: use a table. Tables 20-1 and 20-2 provide the recursion coefficients for low-pass and high-pass filters with 0.5% passband ripple. If you only need a quick and dirty design, copy the appropriate coefficients into your program, and you're done.

There are two problems with using tables to design digital filters. First, tables
have a limited choice of parameters. For instance, Table 20-1 only provides 12
different cutoff frequencies, a maximum of 6 poles per filter, and *no *choice of
passband ripple. Without the ability to select parameters from a continuous
range of values, the filter design cannot be *optimized*. Second, the coefficients
must be manually transferred from the table into the program. This is very time
consuming and will discourage you from trying alternative values.

Instead of using tabulated values, consider including a subroutine in your
program that *calculates* the coefficients. Such a program is shown in Table 20-4. The good news is that the program is relatively simple in structure. After the
four filter parameters are entered, the program spits out the "a" and "b"
coefficients in the arrays A[ ] and B[ ]. The bad news is that the program calls
the subroutine in Table 20-5. At first glance this subroutine is really ugly.
Don't despair; it isn't as bad as it seems! There is one simple branch in line
1120. Everything else in the subroutine is straightforward number crunching.
Six variables enter the routine, five variables leave the routine, and fifteen
temporary variables (plus indexes) are used within. Table 20-5 provides two
sets of test data for debugging this subroutine. Chapter 31 discusses the
operation of this program in detail.
