FFT Programs

As discussed in Chapter 8, the *real DFT* can be calculated by correlating the

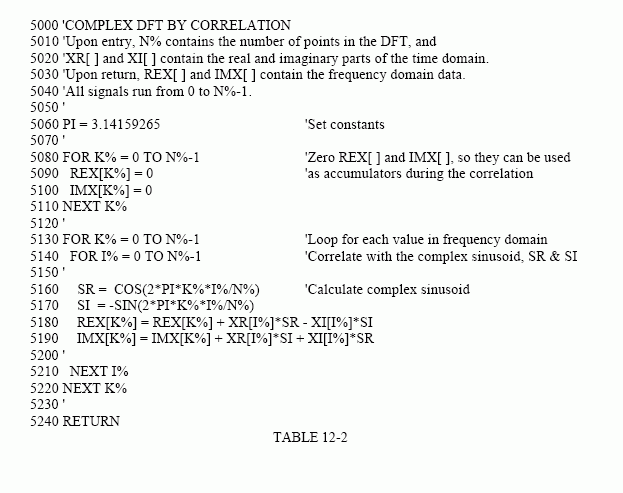

time domain signal with sine and cosine waves (see Table 8-2). Table 12-2
shows a program to calculate the *complex DFT* by the same method. In an
apples-to-apples comparison, this is the program that the FFT improves upon.

Tables 12-3 and 12-4 show two different FFT programs, one in FORTRAN and
one in BASIC. First we will look at the BASIC routine in Table 12-4. This
subroutine produces exactly the same output as the correlation technique in
Table 12-2, except it does it *much faster*. The block diagram in Fig. 12-7 can
be used to identify the different sections of this program. Data are passed to this
FFT subroutine in the arrays: REX[ ] and IMX[ ], each running from sample 0
to *N*-1. Upon return from the subroutine, REX[ ] and IMX[ ] are overwritten
with the frequency domain data. This is another way that the FFT is highly
optimized; the same arrays are used for the input, intermediate storage, and
output. This efficient use of memory is important for designing fast hardware
to calculate the FFT. The term in-place computation is used to describe this
memory usage.

While all FFT programs produce the same numerical result, there are subtle variations in programming that you need to look out for. Several of these

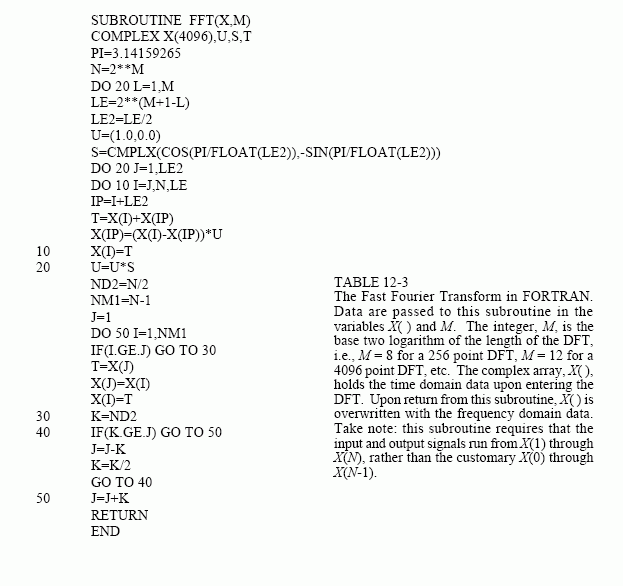

important differences are illustrated by the FORTRAN program listed in Table
12-3. This program uses an algorithm called decimation in frequency, while
the previously described algorithm is called decimation in time. In a
decimation in frequency algorithm, the bit reversal sorting is done *after* the
three nested loops. There are also FFT routines that completely eliminate the
bit reversal sorting. None of these variations significantly improve the
performance of the FFT, and you shouldn't worry about which one you are
using.

The *important* differences between FFT algorithms concern how data are passed
to and from the subroutines. In the BASIC program, data enter and leave the
subroutine in the arrays REX[ ] and IMX[ ], with the samples running from
index 0 to *N*-1. In the FORTRAN program, data are passed in the complex
array *X*( ), with the samples running from 1 to *N*. Since this is an array of
complex variables, each sample in *X*( ) consists of two numbers, a real part and
an imaginary part. The length of the DFT must also be passed to these
subroutines. In the BASIC program, the variable N% is used for this purpose.
In comparison, the FORTRAN program uses the variable M, which is defined
to equal *Log*_{2}*N*. For instance, M will be

8 for a 256 point DFT, 12 for a 4096 point DFT, etc. The point is, the
programmer who writes an FFT subroutine has many options for interfacing
with the host program. Arrays that run from 1 to *N*, such as in the FORTRAN
program, are especially aggravating. Most of the DSP literature (including this
book) explains algorithms assuming the arrays run from sample 0 to *N*-1. For
instance, if the arrays run from 1 to *N*, the symmetry in the frequency domain
is around points 1 and *N*/2 + 1, rather than points 0 and *N*/2.

Using the complex DFT to calculate the real DFT has another interesting
advantage. The complex DFT is more symmetrical between the time and
frequency domains than the real DFT. That is, the duality is stronger. Among
other things, this means that the Inverse DFT is nearly identical to the Forward
DFT. In fact, the easiest way to calculate an *Inverse FFT* is to calculate a

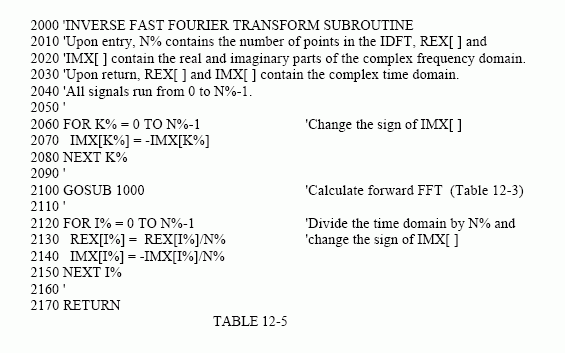

*Forward FFT*, and then adjust the data. Table 12-5 shows a subroutine for
calculating the Inverse FFT in this manner.

Suppose you copy one of these FFT algorithms into your computer program and
start it running. How do you know if it is operating properly? Two tricks are
commonly used for debugging. First, start with some arbitrary time domain
signal, such as from a random number generator, and run it through the FFT.
Next, run the resultant frequency spectrum through the Inverse FFT and
compare the result with the original signal. They should be *identical*, except
round-off noise (a few parts-per-million for single precision).

The second test of proper operation is that the signals have the correct *symmetry*.
When the imaginary part of the time domain signal is composed of all zeros (the
normal case), the frequency domain of the complex DFT will be symmetrical
around samples 0 and *N*/2, as previously described.

Likewise, when this correct symmetry is present in the frequency domain, the Inverse DFT will produce a time domain that has an imaginary part composes of all zeros (plus round-off noise). These debugging techniques are essential for using the FFT; become familiar with them.
