Gibbs Effect

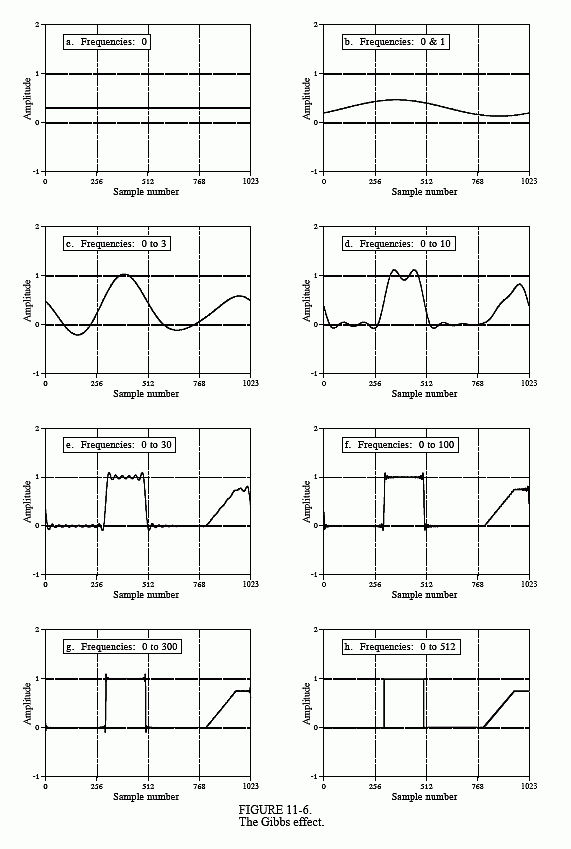

Figure 11-6 shows a time domain signal being synthesized from sinusoids. The
signal being reconstructed is shown in the last graph, (h). Since this signal is
1024 points long, there will be 513 individual frequencies needed for a
complete reconstruction. Figures (a) through (g) show what the reconstructed
signal looks like if only *some* of these frequencies are used. For example, (f)
shows a reconstructed signal using frequencies 0 through 100. This signal was
created by taking the DFT of the signal in (h), setting frequencies 101 through
512 to a value of zero, and then using the Inverse DFT to find the resulting time
domain signal.

As more frequencies are added to the reconstruction, the signal becomes closer
to the final solution. The interesting thing is *how* the final solution is
approached at the *edges* in the signal. There are three sharp edges in (h). Two
are the edges of the rectangular pulse. The third is between sample numbers
1023 and 0, since the DFT views the time domain as periodic. When only some
of the frequencies are used in the reconstruction, each edge shows *overshoot* and
*ringing* (decaying oscillations). This overshoot and ringing is known as the
Gibbs effect, after the mathematical physicist Josiah Gibbs, who explained the
phenomenon in 1899.

Look closely at the overshoot in (e), (f), and (g). As more sinusoids are added,
the *width* of the overshoot decreases; however, the *amplitude* of the overshoot
remains about the same, roughly 9 percent. With discrete signals this is not a
problem; the overshoot is eliminated when the last frequency is added.
However, the reconstruction of continuous signals cannot be explained so
easily. An infinite number of sinusoids must be added to synthesize a
continuous signal. The problem is, the amplitude of the overshoot does not
decrease as the number of sinusoids approaches infinity, it stays about the same
9%. Given this situation (and other arguments), it is reasonable to question if
a summation of continuous sinusoids *can* reconstruct an edge. Remember the
squabble between Lagrange and Fourier?

The critical factor in resolving this puzzle is that the *width* of the overshoot
becomes smaller as more sinusoids are included. The overshoot is still present
with an infinite number of sinusoids, but it has *zero* width. Exactly at the
discontinuity the value of the reconstructed signal converges to the midpoint of
the step. As shown by Gibbs, the summation converges to the signal in the
sense that the *error* between the two has zero energy.

Problems related to the Gibbs effect are frequently encountered in DSP. For
example, a low-pass filter is a *truncation* of the higher frequencies, resulting in
overshoot and ringing at the edges in the *time domain*. Another common
procedure is to truncate the ends of a time domain signal to prevent them from
extending into neighboring periods. By duality, this distorts the edges in the
*frequency domain*. These issues will resurface in future chapters on filter
design.
