The Output Side Algorithm

The first viewpoint of convolution analyzes how each sample in the *input signal*
affects many samples in the output signal. In this second viewpoint, we reverse
this by looking at individual samples in the *output signal*, and finding the
contributing points from the input. This is important from both mathematical
and practical standpoints. Suppose that we are given some input signal and
impulse response, and want to find the convolution of the two. The most
straightforward method would be to write a program that loops through the
*output signal*, calculating one sample on each loop cycle. Likewise, equations
are written in the form: *y*[*n*] = *some combination of other variables*. That is, sample *n* in the output
signal is equal to some combination of the many values in the input signal and
impulse response. This requires a knowledge of how each sample in the output
signal can be calculated independently of all other samples in the output signal.
The output side algorithm provides this information.

Let's look an example of how a single point in the output signal is influenced by
several points from the input. The example point we will use is *y*[6] in Fig. 6-5.
This point is equal to the sum of all the sixth points in the nine output
components, shown in Fig. 6-6. Now, look closely at these nine output
components and identify which can affect *y*[6]. That is, find which of these
nine signals contains a nonzero sample at the sixth position. Five of the output
components only have *added* zeros (the diamond markers) at the sixth sample,
and can therefore be ignored. Only four of the output components are capable
of having a nonzero value in the sixth position. These are the output
components generated from the input samples: *x*[3], *x*[4], *x*[5] and *x*[6]. By adding the sixth sample from each of these output components, *y*[6] is determined as: *y*[6] = *x*[3]*h*[3] + *x*[4]*h*[2] + *x*[5]*h*[1] + *x*[6]*h*[0]. That is, four samples from the
input signal are multiplied by the four samples in the impulse response, and the
products added.

Figure 6-8 illustrates the output side algorithm as a convolution machine, a
flow diagram of how convolution occurs. Think of the input signal, *x*[*n*], and
the output signal, *y*[*n*], as fixed on the page. The convolution machine,
everything inside the dashed box, is free to move left and right as needed. The
convolution machine is positioned so that its output is aligned with the output
sample being calculated. Four samples from the input signal fall into the inputs
of the convolution machine. These values are multiplied by the indicated
samples in the impulse response, and the products are added. This produces the
value for the output signal, which drops into its proper place. For example, *y*[*n*] is shown being calculated from the four input samples: *x*[3], *x*[4], *x*[5], and *x*[6].

To calculate *y*[7], the convolution machine moves one sample to the right. This
results in another four samples entering the machine, *x*[4] through *x*[7], and the
value for *y*[7] dropping into the proper place. This process is repeated for all
points in the output signal needing to be calculated.

The arrangement of the impulse response *inside* the convolution machine is very
important. The impulse response is *flipped left-for-right*. This places sample
number zero on the right, and increasingly positive sample numbers running to
the left. Compare this to the normal impulse response in Fig. 6-5 to understand
the geometry of this flip. Why is this flip needed? It simply falls out of the
mathematics. The impulse response describes how each point in the input
signal affects the output signal. This results in each point in the output signal
being affected by points in the input signal weighted by a *flipped* impulse
response.

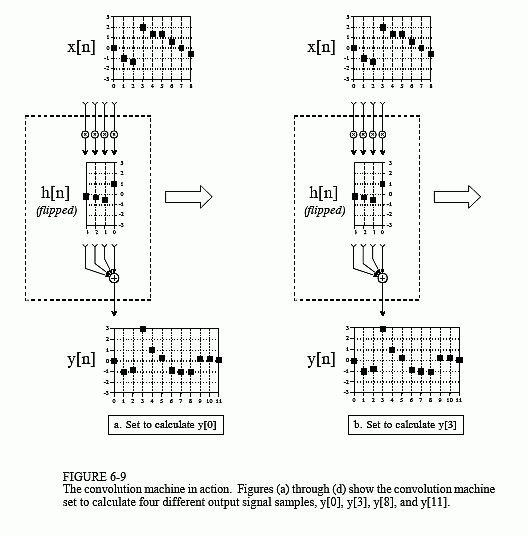

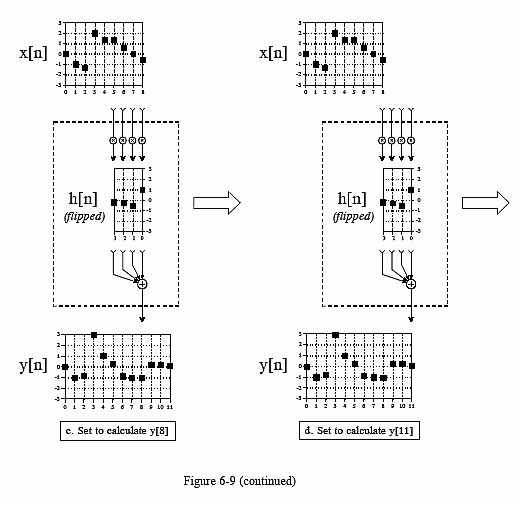

Figure 6-9 shows the convolution machine being used to calculate several
samples in the output signal. This diagram also illustrates a real nuisance in
convolution. In (a), the convolution machine is located fully to the left with its
output aimed at . In this position, it is trying to receive input from samples: *x*[-3], *x*[-2], *x*[-1] and *x*[0]. The problem is, three of these samples: *x*[-3], *x*[-2] and *x*[-1] do not exist! This same dilemma arises in (d), where
the convolution machine tries to accept samples to the right of the defined input
signal, points *x*[9], *x*[10] and *x*[11].

One way to handle this problem is by *inventing* the nonexistent samples. This
involves adding samples to the ends of the input signal, with each of the added
samples having a value of *zero*. This is called padding the signal with zeros.
Instead of trying to access a nonexistent value, the convolution machine
receives a sample that has a value of zero. Since this zero is eliminated during
the multiplication, the result is mathematically the same as *ignoring* the
nonexistent inputs.

The important part is that the far left and far right samples in the output signal
are based on *incomplete* information. In DSP jargon, the impulse response is not fully immersed in the input signal. If the impulse response is *M* points in
length, the first *and* last *M*-1 samples in the output signal are based on less
information than the samples between. This is analogous to an electronic circuit
requiring a certain amount of time to stabilize after the power is applied. The
difference is that this transient is easy to ignore in electronics, but very
prominent in DSP.

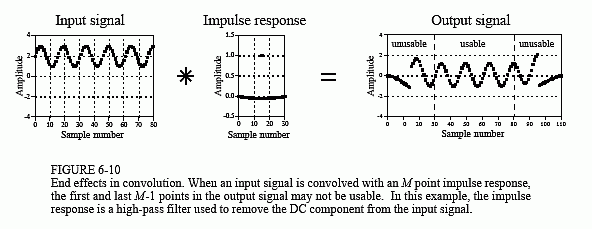

Figure 6-10 shows an example of the trouble these end effects can cause. The
input signal is a sine wave plus a DC component. The desire is to remove the
DC part of the signal, while leaving the sine wave intact. This calls for a high-pass filter, such as the impulse response shown in the figure. The problem is,
the first and last 30 points are a mess! The shape of these end regions can be
understood by imagining the input signal padded with 30 zeros on the left side,
samples *x*[-1] through *x*[-30], and 30 zeros on the right, samples *x*[81]
through *x*[110]. The output signal can then be viewed as a filtered version of
this longer waveform. These "end effect" problems are widespread in DSP. As
a general rule, expect that the beginning and ending samples in processed
signals will be quite useless.

Now the math. Using the convolution machine as a guideline, we can write the
standard equation for convolution. If *x*[*n*] is an *N* point signal running from 0
to *N*-1, and *h*[*n*] is an *M* point signal running from 0 to *M*-1, the convolution of
the two: *y*[*n*] = *x*[*n*] * *h*[*n*], is an *N*+*M*-1 point signal running from 0 to *N*+*M*-2,
given by:

This equation is called the convolution sum. It allows each point in the output
signal to be calculated independently of all other points in the output signal.
The index, *i*, determines which sample in the output signal is being calculated,
and therefore corresponds to the left-right position of the convolution machine.
In computer programs performing convolution, a loop makes this index run
through each sample in the output signal. To calculate one of the output
samples, the index, *j*, is used *inside* of the convolution machine. As *j* runs
through 0 to *M*-1, each sample in the impulse response, *h*[*j*], is multiplied by
the proper sample from the input signal, *x*[*i*-*j*]. All these products are added
to produce the output sample being calculated. Study Eq. 6-1 until you fully
understand how it is implemented by the convolution machine. Much of DSP
is based on this equation. (Don't be confused by the *n* in *y*[*n*] = *x*[*n*] * *h*[*n*]. This is merely a place holder to indicate that *some* variable is the index into the array. Sometimes the equations are written: *y*[] = *x*[] * *h*[], just to avoid having to bring in a meaningless symbol).

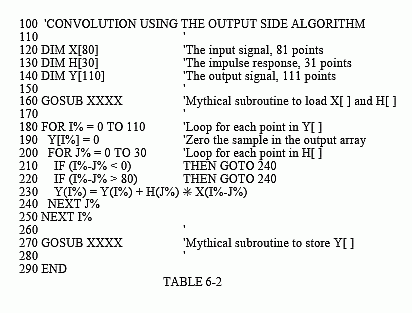

Table 6-2 shows a program for performing convolutions using the *output side
algorithm*, a direct use of Eq. 6-1. This program produces the same output
signal as the program for the *input side algorithm*, shown previously in Table 6-1. Notice the main difference between these two programs: the input side
algorithm loops through each sample in the *input signal *(line 220 of Table 6-1),
while the output side algorithm loops through each sample in the *output signal*
(line 180 of Table 6-2).

Here is a detailed operation of this program. The FOR-NEXT loop in lines 180 to 250 steps through each sample in the output signal, using I% as the index. For each of these values, an inner loop, composed of lines 200 to 230, calculates the value of the output sample, Y[I%]. The value of Y[I%] is set to zero in line 190, allowing it to accumulate the products inside of the convolution machine. The FOR-NEXT loop in lines 200 to 240 provide a direct implementation of Eq. 6-2. The index, J%, steps through each

sample in the impulse response. Line 230 provides the multiplication of each sample in the impulse response, H[J%], with the appropriate sample from the input signal, X[I%-J%], and adds the result to the accumulator.

In line 230, the sample taken from the input signal is: X[I%-J%]. Lines 210
and 220 prevent this from being outside the defined array, X[0] to X[80]. In
other words, this program handles undefined samples in the input signal by
*ignoring* them. Another alternative would be to define the input signal's array
from X[-30] to X[110], allowing 30 zeros to be padded on each side of the true
data. As a third alternative, the FOR-NEXT loop in line 180 could be changed
to run from 30 to 80, rather than 0 to 110. That is, the program would only
calculate the samples in the output signal where the impulse response is *fully
immersed* in the input signal. The important thing is that you must use one of
these three techniques. If you don't, the program will crash when it tries to read
the out-of-bounds data.
