The Sampling Theorem

The definition of *proper sampling* is quite simple. Suppose you sample a
continuous signal in some manner. If you can exactly *reconstruct* the analog
signal from the samples, you must have done the sampling *properly*. Even if the
sampled data appears confusing or incomplete, the key information has been
captured if you can reverse the process.

Figure 3-3 shows several sinusoids before and after digitization. The continious
line represents the analog signal entering the ADC, while the square markers are
the digital signal leaving the ADC. In (a), the analog signal is a constant DC
value, a cosine wave of *zero* frequency. Since the analog signal is a series of
straight lines between each of the samples, all of the information needed to
reconstruct the analog signal is contained in the digital data. According to our
definition, this is* proper sampling.*

The sine wave shown in (b) has a frequency of 0.09 of the sampling rate. This
might represent, for example, a 90 cycle/second sine wave being sampled at
1000 samples/second. Expressed in another way, there are 11.1 samples taken
over each complete cycle of the sinusoid. This situation is more complicated
than the previous case, because the analog signal cannot be reconstructed by
simply drawing straight lines between the data points. Do these samples
properly represent the analog signal? The answer is yes, because no other
sinusoid, or combination of sinusoids, will produce this pattern of samples
(within the reasonable constraints listed below). These samples correspond to
only one analog signal, and therefore the analog signal can be exactly
reconstructed. Again, an instance of *proper sampling*.

In (c), the situation is made more difficult by increasing the sine wave's
frequency to 0.31 of the sampling rate. This results in only 3.2 samples per sine
wave cycle. Here the samples are so sparse that they don't even appear to
follow the general trend of the analog signal. Do these samples properly
represent the analog waveform? Again, the answer is yes, and for exactly the
same reason. The samples are a unique representation of the analog signal. All
of the information needed to reconstruct the continuous waveform is contained
in the digital data. How you go about doing this will be discussed later in this
chapter. Obviously, it must be more sophisticated than just drawing straight
lines between the data points. As strange as it seems, this is *proper sampling*
according to our definition.

In (d), the analog frequency is pushed even higher to 0.95 of the sampling rate,
with a mere 1.05 samples per sine wave cycle. Do these samples properly
represent the data? *No, they don't! * The samples represent a *different* sine wave
from the one contained in the analog signal. In particular, the original sine wave
of 0.95 frequency misrepresents itself as a sine wave of 0.05 frequency in the
digital signal. This phenomenon of sinusoids changing frequency during
sampling is called aliasing. Just as a criminal might take on an assumed name
or identity (an *alias*), the sinusoid assumes another frequency that is not its own.
Since the digital data is no longer uniquely related to a particular analog signal,
an unambiguous reconstruction is impossible. There is nothing in the sampled
data to suggest that the original analog signal had a frequency of 0.95 rather
than 0.05. The sine wave has hidden its true identity completely; the perfect
crime has been committed! According to our definition, this is an example of
*improper sampling*.

This line of reasoning leads to a milestone in DSP, the sampling theorem.
Frequently this is called the *Shannon* sampling theorem, or the *Nyquist* sampling
theorem, after the authors of 1940s papers on the topic. The sampling theorem
indicates that a continuous signal can be properly sampled, *only if it does not
contain frequency components above one-half of the sampling rate*. For instance,
a sampling rate of 2,000 samples/second requires the analog signal to be
composed of frequencies below 1000 cycles/second. If frequencies above this
limit *are* present in the signal, they will be aliased to frequencies between 0 and
1000 cycles/second, combining with whatever information that was legitimately
there.

Two terms are widely used when discussing the sampling theorem: the Nyquist
frequency and the Nyquist rate. Unfortunately, their meaning is not
standardized. To understand this, consider an analog signal composed of
frequencies between DC and 3 kHz. To properly digitize this signal it must be
sampled at 6,000 samples/sec (6 kHz) or higher. Suppose we choose to sample
at 8,000 samples/sec (8 kHz), allowing frequencies between DC and 4 kHz to
be properly represented. In this situation their are four important frequencies:
(1) the highest frequency in the signal, 3 kHz; (2) twice this frequency, 6 kHz;
(3) the sampling rate, 8 kHz; and (4) one-half the sampling rate, 4 kHz. Which
of these four is the *Nyquist frequency* and which is the *Nyquist rate*? It depends
who you ask! All of the possible combinations are used. Fortunately, most
authors are careful to define how they are using the terms. In this book, they are
both used to mean *one-half the sampling rate*.

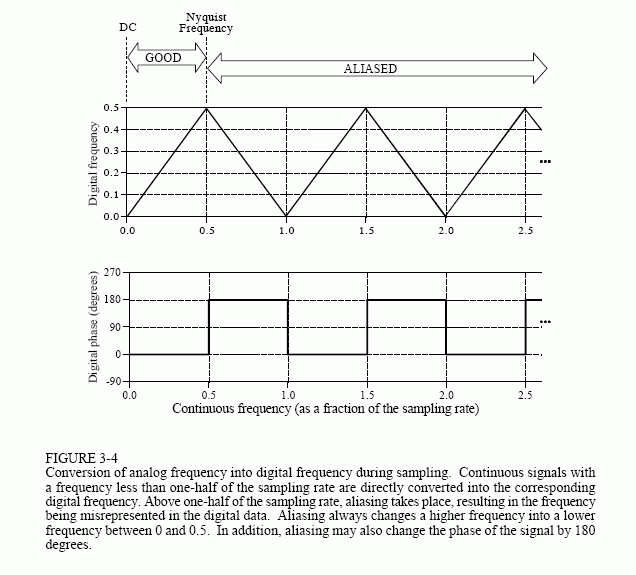

Figure 3-4 shows how frequencies are changed during aliasing. The key point
to remember is that a digital signal *cannot* contain frequencies above one-half
the sampling rate (i.e., the Nyquist frequency/rate). When the frequency of the
continuous wave is below the Nyquist rate, the frequency of the sampled data
is a match. However, when the continuous signal's frequency is above the
Nyquist rate, aliasing *changes* the frequency into something that *can* be
represented in the sampled data. As shown by the zigzagging line in Fig. 3-4,
every continuous frequency above the Nyquist rate has a corresponding digital
frequency between zero and one-half the sampling rate. It there happens to be
a sinusoid already at this lower frequency, the aliased signal will add to it,
resulting in a loss of information. Aliasing is a double curse; information can
be lost about the higher *and* the lower frequency. Suppose you are given a
digital signal containing a frequency of 0.2 of the sampling rate. If this signal
were obtained by proper sampling, the original analog signal *must* have had a
frequency of 0.2. If aliasing took place during sampling, the digital frequency
of 0.2 could have come from any one of an infinite number of frequencies in the
analog signal: 0.2, 0.8, 1.2, 1.8, 2.2, … .

Just as aliasing can change the frequency during sampling, it can also change
the *phase*. For example, look back at the aliased signal in Fig. 3-3d. The
aliased digital signal is *inverted* from the original analog signal; one is a sine
wave while the other is a negative sine wave. In other words, aliasing has
changed the frequency *and* introduced a 180? phase shift. Only two phase shifts
are possible: 0? (no phase shift) and 180? (inversion). The zero phase shift
occurs for analog frequencies of 0 to 0.5, 1.0 to 1.5, 2.0 to 2.5, etc. An inverted
phase occurs for analog frequencies of 0.5 to 1.0, 1.5 to 2.0, 3.5 to 4.0, and so
on.

Now we will dive into a more detailed analysis of sampling and how aliasing
occurs. Our overall goal is to understand what happens to the information
when a signal is converted from a continuous to a discrete form. The problem
is, these are very different things; one is a *continuous waveform* while the other
is an *array of numbers*. This "apples-to-oranges" comparison makes the
analysis very difficult. The solution is to introduce a theoretical concept called
the impulse train.

Figure 3-5a shows an example analog signal. Figure (c) shows the signal
sampled by using an *impulse train*. The impulse train is a continuous signal
consisting of a series of narrow spikes (impulses) that match the original signal
at the sampling instants. Each impulse is infinitesimally narrow, a concept that
will be discussed in Chapter 13. Between these sampling times the value of the
waveform is zero. Keep in mind that the impulse train is a *theoretical* concept,
not a waveform that can exist in an electronic circuit. Since both the original
analog signal and the impulse train are continuous waveforms, we can make an
"apples-apples" comparison between the two.

Now we need to examine the relationship between the impulse train and the
discrete signal (an array of numbers). This one is easy; in terms of *information
content*, they are *identical*. If one is known, it is trivial to calculate the other.
Think of these as different ends of a bridge crossing between the analog and
digital worlds. This means we have achieved our overall goal once we
understand the consequences of changing the waveform in Fig. 3-5a into the
waveform in Fig. 3.5c.

Three continuous waveforms are shown in the left-hand column in Fig. 3-5. The
corresponding *frequency spectra* of these signals are displayed in the right-hand
column. This should be a familiar concept from you knowledge of electronics;
every waveform can be viewed as being composed of sinusoids of varying
amplitude and frequency. Later chapters will discuss the frequency domain in
detail. (You may want to revisit this discussion after becoming more familiar
with frequency spectra).

Figure (a) shows an analog signal we wish to sample. As indicated by its
frequency spectrum in (b), it is composed only of frequency components
between 0 and about 0.33 f>_{s}, where f_{s} is the sampling frequency we intend to
use. For example, this might be a speech signal that has been filtered to remove
all frequencies above 3.3 kHz. Correspondingly, f_{s} would be 10 kHz (10,000
samples/second), our intended sampling rate.

Sampling the signal in (a) by using an impulse train produces the signal shown
in (c), and its frequency spectrum shown in (d). This spectrum is a *duplication*
of the spectrum of the original signal. Each multiple of the sampling frequency,
f_{s}, 2f_{s}, 3f_{s}, 4f_{s}, etc., has received a *copy* and a *left-for-right flipped copy* of the
original frequency spectrum. The copy is called the upper sideband, while the
flipped copy is called the lower sideband. Sampling has generated *new*
frequencies. Is this proper sampling? The answer is yes, because the signal in
(c) can be transformed back into the signal in (a) by eliminating all frequencies
above ?f_{s}_{.} That is, an analog low-pass filter will convert the impulse train, (b),
back into the original analog signal, (a).

If you are already familiar with the basics of DSP, here is a more technical
explanation of why this spectral duplication occurs. (Ignore this paragraph if
you are new to DSP). In the time domain, sampling is achieved by multiplying
the original signal by an impulse train of *unity amplitude* spikes. The frequency
spectrum of this unity amplitude impulse train is also a unity amplitude impulse
train, with the spikes occurring at multiples of the sampling frequency, f_{s}, 2f_{s},
3f_{s}, 4f_{s}, etc. When two time domain signals are multiplied, their frequency
spectra are convolved. This results in the original spectrum being duplicated
to the location of each spike in the impulse train's spectrum. Viewing the
original signal as composed of both positive and negative frequencies accounts
for the upper and lower sidebands, respectively. This is the same as amplitude
modulation, discussed in Chapter 10.

Figure (e) shows an example of *improper sampling*, resulting from too low of
sampling rate. The analog signal still contains frequencies up to 3.3 kHz, but
the sampling rate has been lowered to 5 kHz. Notice that along the
horizontal axis are spaced closer in (f) than in (d). The frequency spectrum, (f),
shows the problem: the duplicated portions of the spectrum have invaded the
band between zero and one-half of the sampling frequency. Although (f) shows
these overlapping frequencies as retaining their separate identity, in actual
practice they add together forming a single confused mess. Since there is no
way to separate the overlapping frequencies, information is lost, and the
original signal cannot be reconstructed. This overlap occurs when the analog
signal contains frequencies greater than one-half the sampling rate, that is, we
have proven the sampling theorem.
