Match #2: Windowed-Sinc vs. Chebyshev

Both the windowed-sinc and the Chebyshev filters are designed to separate one
band of frequencies from another. The windowed-sinc is an FIR filter
implemented by *convolution*, while the Chebyshev is an IIR filter carried out by
*recursion*. Which is the best digital filter in the frequency domain? We'll let
them fight it out.

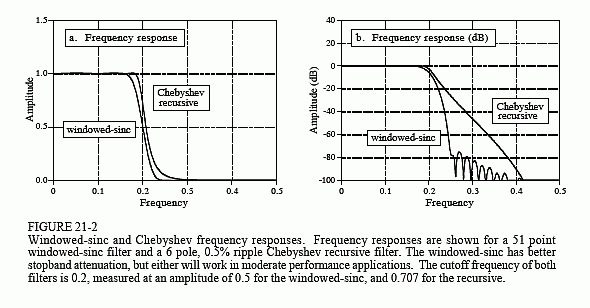

The recursive filter contender will be a 0.5% ripple, 6 pole Chebyshev low-pass filter. A fair comparison is complicated by the fact that the Chebyshev's frequency response changes with the cutoff frequency. We will use a cutoff frequency of 0.2, and select the windowed-sinc's filter kernel to be 51 points. This makes both filters have the same 90% to 10% roll-off, as shown in Fig. 21-2(a).

Now the pushing and shoving begins. The recursive filter has a 0.5% ripple in the passband, while the windowed-sinc is flat. However, we could easily set the recursive filter ripple to 0% if needed. No points. Figure 21-2b shows that the windowed-sinc has a much better stopband attenuation than the Chebyshev. One point for the windowed-sinc.

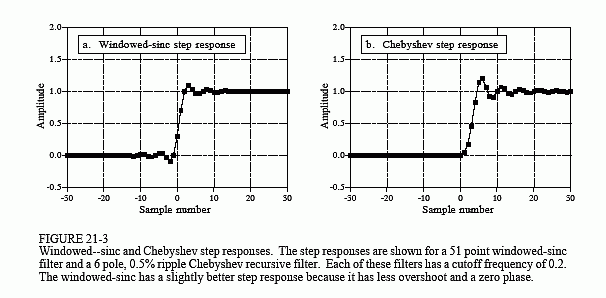

Figure 21-3 shows the step response of the two filters. Both are bad, as you should expect for frequency domain filters. The recursive filter has a nonlinear phase, but this can be corrected with bidirectional filtering. Since both filters are so ugly in this parameter, we will call this a draw.

So far, there isn't much difference between these two filters; either will work
when moderate performance is needed. The heavy hitting comes over two
critical issues: *maximum performance* and *speed*. The windowed-sinc is a
powerhouse, while the Chebyshev is quick and agile. Suppose you have a really
tough frequency separation problem, say, needing to isolate a 100

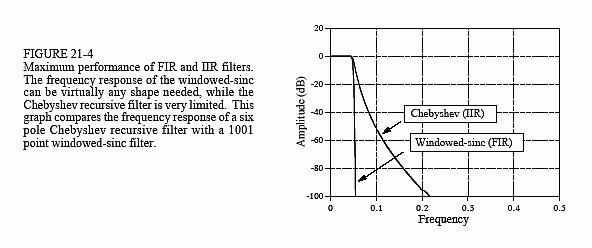

millivolt signal at 61 hertz that is riding on a 120 volt power line at 60 hertz. Figure 21-4 shows how these two filters compare when you need maximum performance. The recursive filter is a 6 pole Chebyshev with 0.5% ripple. This is the maximum number of poles that can be used at a 0.05 cutoff frequency with single precision. The windowed-sinc uses a 1001 point filter kernel, formed by convolving a 501 point windowed-sinc filter kernel with itself. As shown in Chapter 16, this provides greater stopband attenuation.

How do these two filters compare when maximum performance is needed? The
windowed-sinc crushes the Chebyshev! Even if the recursive filter were
improved (more poles, multistage implementation, double precision, etc.), it is
still no match for the FIR performance. This is especially impressive when you
consider that the windowed-sinc has only begun to fight. There are strong
limits on the maximum performance that recursive filters can provide. The
windowed-sinc, in contrast, can be pushed to incredible levels. This is, of
course, provided you are willing to wait for the result. Which brings up the
second critical issue: *speed*.

Comparing these filters for speed is like racing a Ferrari against a go-cart.

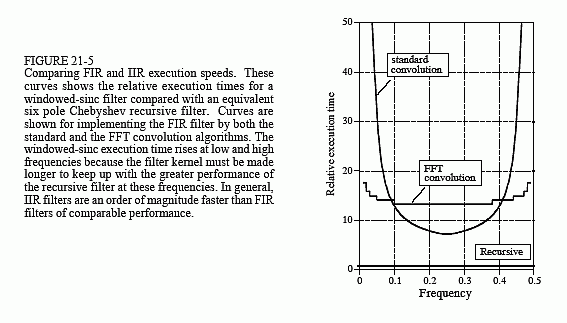

Figure 21-5 shows how much longer the windowed-sinc takes to execute,
compared to a six pole recursive filter. Since the recursive filter has a faster
roll-off at low and high frequencies, the length of the windowed-sinc kernel
must be made *longer* to match the performance (i.e., to keep the comparison
fair). This accounts for the increased execution time for the windowed-sinc
near frequencies 0 and 0.5. The important point is that FIR filters can be
expected to be about an order of magnitude slower than comparable IIR filters
(go-cart: 15 mph, Ferrari: 150 mph).
