More on Following Benford's law

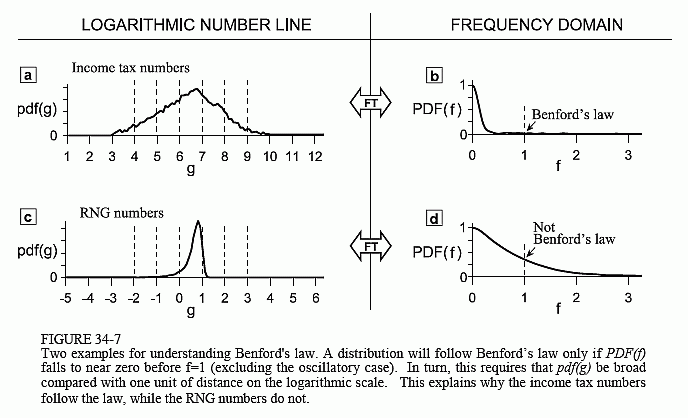

This last result is very surprising; the mystery of Benford's law turns out
to be nothing more than distribution width. Figure 34-7 demonstrates this
using our previous examples. Figures (a) and (c) are the histograms of
the income tax return and the RNG numbers, respectively, on the
logarithmic scale. Figure (b) and (d) are their Fourier Transforms. The
Benford's Law Compliance Theorem tells us that (b) will follow
Benford's law very closely, while (d) will follow it very poorly. That is,
*PDF(f)* falls to near zero before f=1 for the income tax numbers, but does
not for the RNG numbers. The next step of this is less rigorous, but still
perfectly clear. Figure (b) falls to zero quickly because (a) is broad.
Likewise, (d) falls to zero more slowly because (c) is narrow.

This also tells us something about the magic trick. If the distribution is
wide compared with unit distance on the log axis, it means that the spread
in the set of numbers being examined is much greater than *ten*. For
instance, look back at the income tax numbers shown in Fig. 34-2a. The
largest numbers in this set are about a *million* times greater in value than
the smallest numbers. This extensive spread is a key part of stamping the
logarithmic pattern into the data. That is, 543,923,100 must be divided by
100,000,000 to place it between 1 and 9.99999, while 1,221 only needs to
be divided by 1,000. In other words, different numbers are being treated
differently, all according to an anti-logarithmic pattern.

Now look at the RNG numbers in Fig. 34-2, a group that does not obey Benford's law. The largest numbers in this set are about four times the smallest numbers (measured from -σ to +σ). That is, they are grouped relatively close together in value. When we extract the leading digits from these numbers, most of them are treated exactly the same. For instance, both 7.844026 and 1.230605 are divided by 1 to place them between 1 and 9.999999. Likewise, numbers clustered around 5,000 would all be divided by 1,000 to extract the leading digits. Since the vast majority of the numbers are being treated the same, or nearly the same, the distortion of the data is relatively weak. That is, the logarithmic pattern cannot be introduced into the data, and the magic trick fails.

How does Benford's law behave in other bases? Suppose you repeat the
previous derivation in base 4 instead of base 10. The base 4 logarithmic
number line is used and the Benford's Law Compliance Theorem still
holds. The difference comes in when we compare the width of our test
distribution with one unit of distance on the logarithmic scale. One unit
of distance in base 4 is only log10(4) = 0.602 the length of one unit in
base 10, making it easier for the distribution to comply with Benford's
law. In terms of the magic trick, the spread in the numbers being
examined only needs to be much greater than *four*, rather than *ten*. In the
common case where *PDF(f)* smoothly decreases, Benford's law will
always be followed better when converted to a lower base, and worse if
converted to a higher base. For instance, the income tax numbers *will not*
follow Benford's law if converted to base 10,000 or above (making the
unit distance on the log scale four times greater). Likewise, the RND
number *will* follow Benford's law if converted to base 2 (shortening the
unit distance to log_{10}(2) = 0.301).

**A note for advanced readers:** You may have noticed a problem with this
last statement, that is: * all numbers in base 2 have a leading digit of 1*.
However, a more sophisticated definition of Benford's law can be used
to eliminate issues of this sort. The leading digit of a number can be
found by repeatedly multiplying/dividing the number by ten until it is
between 1 and 9.99999, and then taking the integer portion. The advanced
method stops after the first step, and directly looks at the pdf of the
numbers running between 1 and 9.99999. We will call these the

This "*k/n*" form of Benford's law can be also derived from the method of
Fig. 34-5. The fraction of the modified numbers that are greater than *p*
but less than *q* is found by integrating *a(n)* between *p* and *q*. Further, this
fraction will remain a constant under the scaling test if Benford's law is

being followed. However, this value is also equal to the average value of
the appropriate scaling function. The logic here is the same used to show
that the average value of *ost(g)* is equal to the average value of *sf(g)* in
"Solving Mystery #1." These two factors become the left and right sides
of the following equation, respectively:

Solving this equation results in Benford's law, i.e., a(n) = k/n.
