The Recursive Method

To start the discussion of recursive filters, imagine that you need to extract
information from some signal, *x*[ ]. Your need is so great that you hire an old
mathematics professor to process the data for you. The professor's task is to
filter *x*[ ] to produce *y*[ ], which hopefully contains the information you are
interested in. The professor begins his work of calculating each point in *y*[ ] according to some algorithm that is locked tightly in his over-developed brain.
Part way through the task, a most unfortunate event occurs. The professor
begins to babble about analytic singularities and fractional transforms, and other
demons from a mathematician's nightmare. It is clear that the professor has lost
his mind. You watch with anxiety as the professor, and your algorithm, are
taken away by several men in white coats.

You frantically review the professor's notes to find the algorithm he was using.
You find that he had completed the calculation of points *y*[0] through *y*[27], and
was about to start on point *y*[28]. As shown in Fig. 19-1, we will let the
variable, *n*, represent the point that is currently being calculated. This means
that *y*[*n*] is sample 28 in the output signal, *y*[*n* - 1] is sample 27, *y*[*n* - 2] is
sample 26, etc. Likewise, *x*[*n*] is point 28 in the input signal, *x*[*n* - 1] is point 27, etc. To understand the algorithm being used, we ask ourselves: "What information was available to the professor to calculate *y*[*n*], the sample currently being worked on?"

The most obvious source of information is the *input signal*, that is, the values: *x*[*n*], *x*[*n* - 1], *x*[*n* - 2], …. The professor could have been multiplying each point
in the input signal by a coefficient, and adding the products together:

You should recognize that this is nothing more than simple convolution, with
the coefficients: *a*_{0}, *a*_{1}, *a*_{2}, …, forming the convolution kernel. If this was all the
professor was doing, there wouldn't be much need for this story, or this chapter.
However, there is another source of information that the professor had access
to: the *previously* calculated values of the output signal, held in: *y*[*n* - 1], *y*[*n* - 2], *y*[*n* - 3], …. Using this additional information, the algorithm
would be in the form:

In words, each point in the output signal is found by multiplying the values from
the input signal by the "a" coefficients, multiplying the previously calculated
values from the output signal by the "b" coefficients, and adding the products
together. Notice that there isn't a value for *b*_{0}, because this corresponds to the sample being calculated. Equation 19-1 is called the recursion equation, and
filters that use it are called recursive filters. The "a" and "b" values that define
the filter are called the recursion coefficients. In actual practice, no more than
about a dozen recursion coefficients can be used or the filter becomes unstable

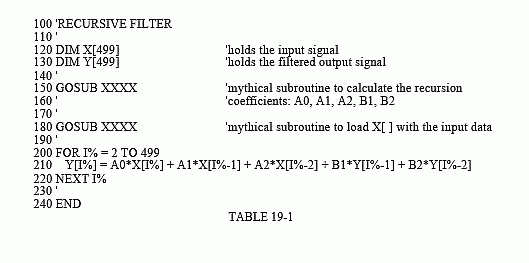

(i.e., the output continually increases or oscillates). Table 19-1 shows an
example recursive filter program.

Recursive filters are useful because they *bypass* a longer convolution. For
instance, consider what happens when a delta function is passed through a
recursive filter. The output is the filter's *impulse response*, and will typically be
a sinusoidal oscillation that exponentially decays. Since this impulse response
in infinitely long, recursive filters are often called *infinite impulse response*
(IIR) filters. In effect, recursive filters *convolve* the input signal with a very
long filter kernel, although only a few coefficients are involved.

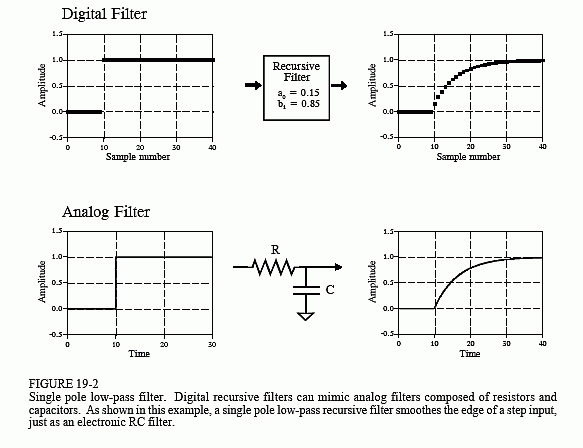

The relationship between the recursion coefficients and the filter's response is
given by a mathematical technique called the z-transform, the topic of Chapter
31. For example, the z-transform can be used for such tasks as: converting
between the recursion coefficients and the frequency response, combining
cascaded and parallel stages into a single filter, designing recursive systems that
mimic analog filters, etc. Unfortunately, the z-transform is very mathematical,
and more complicated than most DSP *users* are willing to deal with. This is the
realm of those that specialize in DSP.

There are three ways to find the recursion coefficients without having to
understand the z-transform. First, this chapter provides design equations for
several types of simple recursive filters. Second, Chapter 20 provides a
"cookbook" computer program for designing the more sophisticated *Chebyshev*
low-pass and high-pass filters. Third, Chapter 26 describes an iterative method
for designing recursive filters with an *arbitrary* frequency response.
