The Frequency Domain's Independent Variable

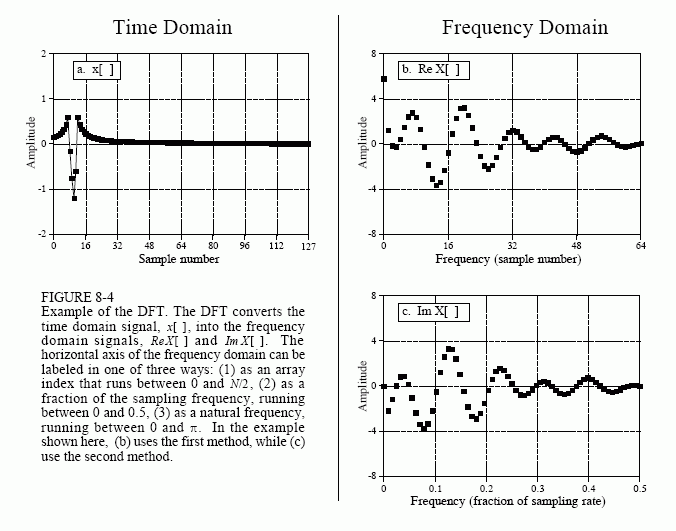

Figure 8-4 shows an example DFT with *N* = 128. The time domain signal is
contained in the array: *x*[0] to *x*[127]. The frequency domain signals are
contained in the two arrays: *ReX*[0] to *ReX*[64], and *ImX*[0] to *ImX*[64].
Notice that 128 points in the time domain corresponds to 65 points in each of
the frequency domain signals, with the frequency indexes running from 0 to 64.
That is, *N* points in the time domain corresponds to *N*/2 + 1 points in the
frequency domain (not *N*/2 points). Forgetting about this extra point is a
common bug in DFT programs.

The horizontal axis of the frequency domain can be referred to in four different
ways, all of which are common in DSP. In the first method, the horizontal axis
is labeled from 0 to 64, corresponding to the 0 to *N*/2 samples in the arrays.
When this labeling is used, the index for the frequency domain is an integer, for
example, *ReX*[*k*] and *ImX*[*k*], where *k* runs from 0 to *N*/2 in steps of one.
Programmers like this method because it is how they write code, using an index
to access array locations. This notation is used in Fig. 8-4b.

In the second method, used in (c), the horizontal axis is labeled as a *fraction of
the sampling rate*. This means that the values along the horizonal axis always
run between 0 and 0.5, since discrete data can only contain frequencies between
DC and one-half the sampling rate. The index used with this notation is *f*, for
frequency. The real and imaginary parts are written: *ReX*[*f*] and *ImX*[*f*], where *f* takes on *N*/2+1 equally spaced values between 0 and 0.5. To convert from the first notation, *k*, to the second notation, *f*, divide the horizontal axis by *N*. That is, *f* = *k*/*N*. Most of the graphs in this book use this second method, reinforcing that discrete signals only contain frequencies between 0 and 0.5 of the sampling rate.

The third style is similar to the second, except the horizontal axis is multiplied
by 2π. The index used with this labeling is ω, a lower case Greek *omega*. In
this notation, the real and imaginary parts are written: *ReX*[ω] and *ImX*[ω], where ω takes on *N*/2 + 1 equally spaced values between 0 and π. The
parameter, ω, is called the natural frequency, and has the units of radians. This
is based on the idea that there are 2π radians in a circle. Mathematicians like
this method because it makes the equations shorter. For instance, consider how
a cosine wave is written in each of these first three notations: using *k*:
*c*[*n*] = cos(2π*kn*/*N*), using *f*: *c*[*n*] = cos(2π*fn*), and using ω: *c*[*n*] = cos(ω*n*).

The fourth method is to label the horizontal axis in terms of the analog
frequencies used in a *particular* application. For instance, if the system being
examined has a sampling rate of 10 kHz (i.e., 10,000 samples per second),
graphs of the frequency domain would run from 0 to 5 kHz. This method has
the advantage of presenting the frequency data in terms of a *real world* meaning.
The disadvantage is that it is tied to a particular sampling rate, and is therefore
not applicable to general DSP algorithm development, such as designing digital
filters.

All of these four notations are used in DSP, and you need to become
comfortable with converting between them. This includes both graphs and
mathematical equations. To find which notation is being used, look at the
independent variable and its range of values. You should find one of four
notations: *k* (or some other integer index), running from 0 to *N*/2; *f*, running
from 0 to 0.5; ω, running from 0 to π; or a frequency expressed in hertz, running
from DC to one-half of an actual sampling rate.
