Mathematical Properties

Commutative Property

The commutative property for convolution is expressed in mathematical form:

In words, the order in which two signals are convolved makes no difference; the
results are identical. As shown in Fig. 7-8, this has a strange meaning for
system theory. In any linear system, the input signal and the system's impulse
response can be *exchanged* without changing the output signal. This is
interesting, but usually doesn't have any physical meaning. The input signal
and the impulse response are very different things. Just because the
mathematics *allows* you to do something, doesn't mean that it makes sense to do
it. For example, suppose you make: $10/hour ? 2,000 hours/year =
$20,000/year. The commutative property for multiplication provides that you
can make the same annual salary by only working 10 hours/year at $2000/hour.
Let's see you convince your boss that this is meaningful! In spite of this, the
commutative property sees great use in DSP for manipulating equations, just
as in ordinary algebra.

Associative Property

Is it possible to convolve three or more signals? The answer is yes, and the
associative property describes how: convolve two of the signals to produce an
intermediate signal, then convolve the intermediate signal with the third signal.
The associative property provides that the order of the convolutions doesn't
matter. As an equation:

The associative property is used in system theory to describe how cascaded

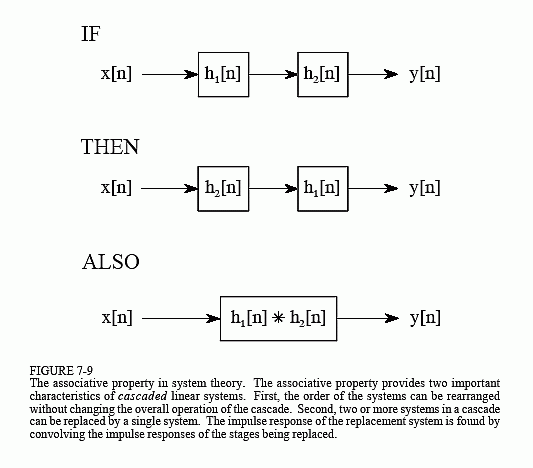

systems behave. As shown in Fig. 7-9, two or more systems are said to be in a
*cascade* if the output of one system is used as the input for the next system.
From the associative property, the order of the systems can be rearranged
without changing the overall response of the cascade. Further, any number of
cascaded systems can be replaced with a *single* system. The impulse response
of the replacement system is found by convolving the impulse responses of all
of the original systems.

Distributive Property

In equation form, the distributive property is written:

The distributive property describes the operation of parallel systems with

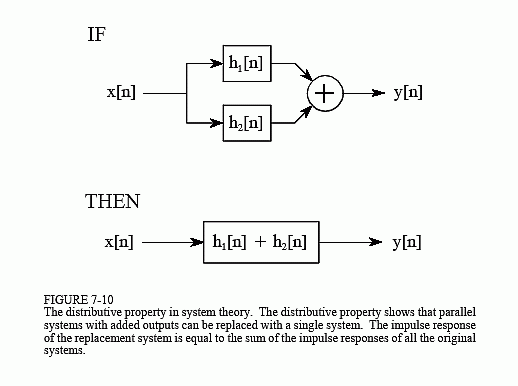

added outputs. As shown in Fig. 7-10, two or more systems can share the same
input, *x*[*n*], and have their outputs added to produce *y*[*n*]. The distributive
property allows this combination of systems to be replaced with a single system,
having an impulse response equal to the *sum* of the impulse responses of the
original systems.

Transference between the Input and Output

Rather than being a formal mathematical property, this is a way of thinking

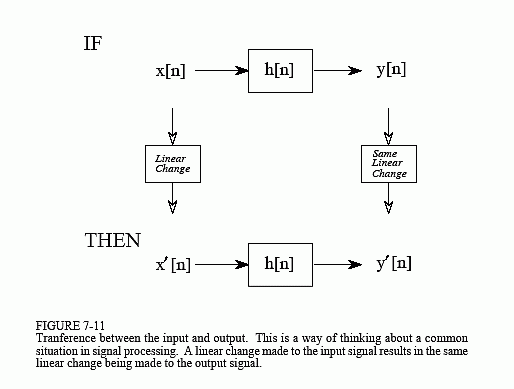

about a common situation in signal processing. As illustrated in Fig. 7-11,
imagine a linear system receiving an input signal, *x*[*n*], and generating an
output signal, *y*[*n*]. Now suppose that the input signal is changed in some linear
way, resulting in a new input signal, which we will call *x*´[*n*]. This results in
a new output signal, *y*?[*n*]. The question is, how does the change in the input
signal relate to the change in the output signal? The answer is:* the output signal
is changed in exactly the same linear way that the input signal was changed*. For
example, if the input signal is amplified by a factor of two, the output signal will
also be amplified by a factor of two. If the derivative is taken of the input
signal, the derivative will also be taken of the output signal. If the input is
filtered in some way, the output will be filtered in an identical manner. This
can easily be proven by using the associative property.

The Central Limit Theorem

The Central Limit Theorem is an important tool in probability theory because
it mathematically explains why the Gaussian probability distribution is observed
so commonly in nature. For example: the amplitude of thermal noise in
electronic circuits follows a Gaussian distribution; the cross-sectional intensity
of a laser beam is Gaussian; even the pattern of holes around a dart board bull's
eye is Gaussian. In its simplest form, the Central Limit Theorem states that a
Gaussian distribution results when the observed variable is the sum of many
random processes. Even if the component processes do not have a Gaussian
distribution, the sum of them will.

The Central Limit Theorem has an interesting implication for convolution. If
a pulse-like signal is convolved with *itself* many times, a Gaussian is produced.

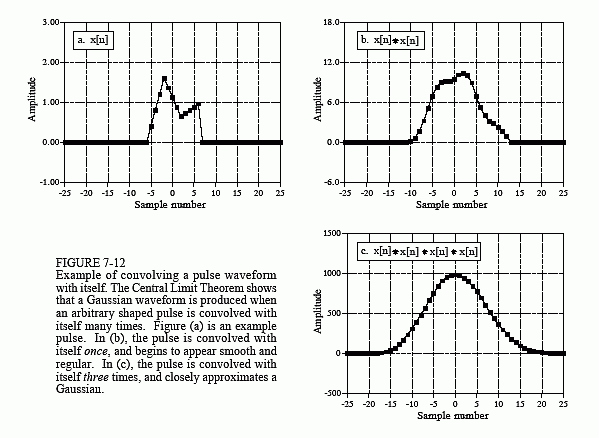

Figure 7-12 shows an example of this. The signal in (a) is an

irregular pulse, purposely chosen to be very unlike a Gaussian. Figure (b)
shows the result of convolving this signal with itself *one* time. Figure (c) shows
the result of convolving this signal with itself *three* times. Even with only three
convolutions, the waveform looks very much like a Gaussian. In mathematics
jargon, the procedure *converges* to a Gaussian *very quickly*. The width of the
resulting Gaussian (i.e., σ in Eq. 2-7 or 2-8) is equal to the width of the original
pulse (expressed as σ in Eq. 2-7) multiplied by the square root of the number of
convolutions.
