The Roots of DSP

Digital Signal Processing is distinguished from other areas in computer science
by the unique type of data it uses: *signals*. In most cases, these signals originate
as sensory data from the real world: seismic vibrations, visual images, sound
waves, etc. DSP is the mathematics, the algorithms, and the techniques used to
manipulate these signals after they have been converted into a digital form.
This includes a wide variety of goals, such as: enhancement of visual images,
recognition and generation of speech, compression of data for storage and
transmission, etc. Suppose we attach an analog-to-digital converter to a
computer and use it to acquire a chunk of real world data. DSP answers the
question: *What next*?

The roots of DSP are in the 1960s and 1970s when digital computers first
became available. Computers were expensive during this era, and DSP was
limited to only a few critical applications. Pioneering efforts were made in four
key areas: *radar & sonar*, where national security was at risk; *oil exploration*,
where large amounts of money could be made; *space exploration*, where the data are irreplaceable; and *medical imaging*, where lives could be
saved. The personal computer revolution of the 1980s and 1990s caused DSP
to exploded with new applications. Rather than being motivated by military and
government needs, DSP was suddenly driven by the commercial marketplace.
Anyone who thought they could make money in the rapidly expanding field was
suddenly a DSP vender. DSP reached the public in such products as: mobile
telephones, compact disc players, and electronic voice mail. Figure 1-1
illustrates a few of these varied applications.

This technological revolution occurred from the top-down. In the early 1980s,
DSP was taught as a *graduate* level course in electrical engineering. A decade
later, DSP had become a standard part of the *undergraduate* curriculum. Today,
DSP is a *basic skill* needed by scientists and engineers

in many fields. As an analogy, DSP can be compared to a previous
technological revolution: *electronics*. While still the realm of electrical
engineering, nearly every scientist and engineer has some background in basic
circuit design. Without it, they would be lost in the technological world. DSP
has the same future.

This recent history is more than a curiosity; it has a tremendous impact on *your*
ability to learn and use DSP. Suppose you encounter a DSP problem, and turn
to textbooks or other publications to find a solution. What you will typically
find is page after page of equations, obscure mathematical symbols, and
unfamiliar terminology. It's a nightmare! Much of the DSP literature is baffling
even to those experienced in the field. It's not that there is anything wrong with
this material, it is just intended for a very specialized audience. State-of-the-art
researchers need this kind of detailed mathematics to understand the theoretical
implications of the work.

A basic premise of this book is that most practical DSP techniques can be
learned and used without the traditional barriers of detailed mathematics and
theory. *The Scientist and Engineers Guide to Digital Signal Processing *is written
for those who want to use DSP as a *tool*, not a new *career*.

The remainder of this chapter illustrates areas where DSP has produced
revolutionary changes. As you go through each application, notice that DSP is
very *interdisciplinary*, relying on the technical work in many adjacent fields.

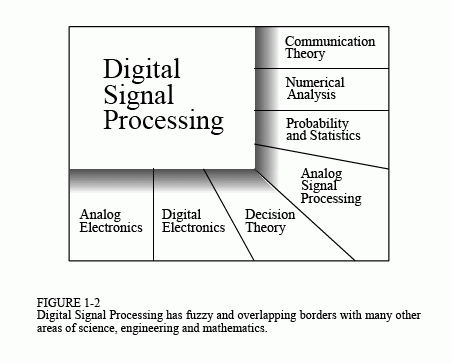

As Fig. 1-2 suggests, the borders between DSP and other technical disciplines
are not sharp and well defined, but rather fuzzy and overlapping. If you want to
specialize in DSP, these are the allied areas you will also need to study.
