Time Domain Parameters

It may not be obvious why the step response is of such concern in time domain filters. You may be wondering why the impulse response isn't the important parameter. The answer lies in the way that the human mind understands and processes information. Remember that the step, impulse and frequency responses all contain identical information, just in different arrangements. The step response is useful in time domain analysis because it matches the way humans view the information contained in the signals.

For example, suppose you are given a signal of some unknown origin and asked
to analyze it. The first thing you will do is divide the signal into regions of
similar characteristics. You can't stop from doing this; your mind will do it
automatically. Some of the regions may be smooth; others may have large
amplitude peaks; others may be noisy. This segmentation is accomplished by
identifying the points that separate the regions. This is where the step function
comes in. The step function is the purest way of representing a division
between two dissimilar regions. It can mark when an event starts, or when an
event ends. It tells you that whatever is on the *left* is somehow different from
whatever is on the *right*. This is how the human mind views time domain
information: a group of step functions dividing the information into regions of
similar characteristics. The step response, in turn, is important because it
describes how the dividing lines are being modified by the filter.

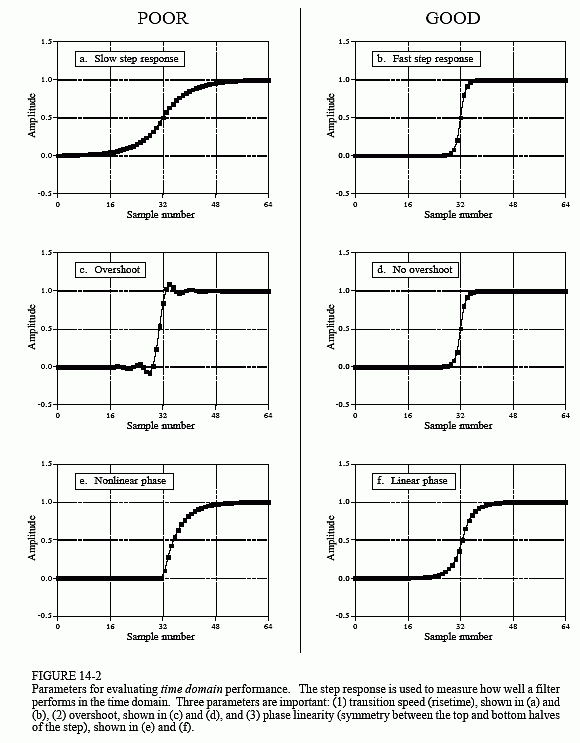

The step response parameters that are important in filter design are shown in
Fig. 14-2. To distinguish events in a signal, the duration of the step response
must be shorter than the spacing of the events. This dictates that the step
response should be as *fast* (the DSP jargon) as possible. This is shown in Figs.
(a) & (b). The most common way to specify the risetime (more jargon) is to
quote the number of samples between the 10% and 90% amplitude levels. Why
isn't a very fast risetime always possible? There are many reasons, noise
reduction, inherent limitations of the data acquisition system, avoiding aliasing,
etc.

Figures (c) and (d) shows the next parameter that is important: overshoot in the step response. Overshoot must generally be eliminated because it changes the amplitude of samples in the signal; this is a basic distortion of the information contained in the time domain. This can be summed up in

one question: Is the overshoot you observe in a signal coming from the thing you are trying to measure, or from the filter you have used?

Finally, it is often desired that the upper half of the step response be
symmetrical with the lower half, as illustrated in (e) and (f). This symmetry is
needed to make the *rising edges* look the same as the *falling edges*. This
symmetry is called linear phase, because the frequency response has a phase
that is a straight line (discussed in Chapter 19). Make sure you understand these
three parameters; they are the key to evaluating time domain filters.
