Arbitrary Frequency Response

The approach used to derive the windowed-sinc filter in the last chapter can also
be used to design filters with virtually *any* frequency response. The only
difference is how the desired response is moved from the frequency domain into
the time domain. In the windowed-sinc filter, the frequency response and the
filter kernel are both represented by *equations*, and the conversion between
them is made by evaluating the *mathematics* of the Fourier transform. In the
method presented here, both signals are represented by *arrays of numbers*, with
a *computer program* (the FFT) being used to find one from the other.

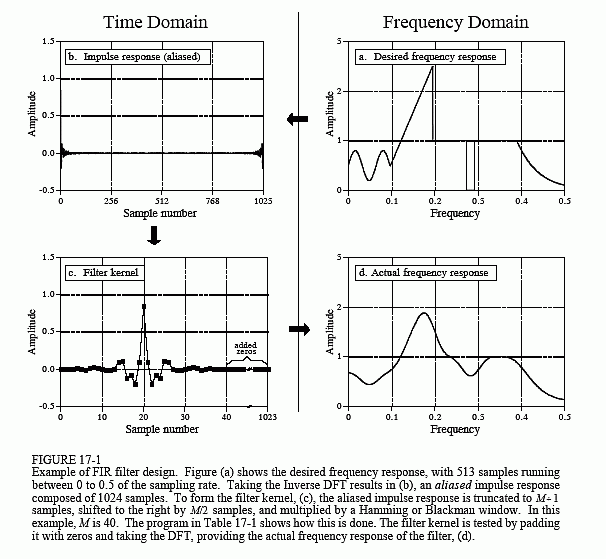

Figure 17-1 shows an example of how this works. The frequency response we
want the filter to produce is shown in (a). To say the least, it is very irregular
and would be virtually impossible to obtain with analog electronics. This ideal
frequency response is *defined* by an array of numbers that have been selected,
not some mathematical equation. In this example, there are 513 samples spread
between 0 and 0.5 of the sampling rate. More points could be used to better
represent the desired frequency response, while a smaller number may be
needed to reduce the computation time during the filter design. However, these
concerns are usually small, and 513 is a good length for most applications.

Besides the desired *magnitude* array shown in (a), there must be a corresponding
*phase* array of the same length. In this example, the phase of the desired
frequency response is entirely *zero* (this array is not shown in Fig. 17-1). Just
as with the magnitude array, the phase array can be loaded with any arbitrary
curve you would like the filter to produce. However, remember that the first
and last samples (i.e., 0 and 512) of the phase array must have a value of *zero*
(or a multiple of 2π, which is the same thing). The frequency response can also
be specified in rectangular form by defining the array entries for the *real* and
*imaginary parts*, instead of using the magnitude and phase.

The next step is to take the Inverse DFT to move the filter into the time domain.
The quickest way to do this is to convert the frequency domain to rectangular
form, and then use the Inverse FFT. This results in a 1024 sample signal
running from 0 to 1023, as shown in (b). This is the impulse response that
corresponds to the frequency response we want; however, it is not suitable for
use as a filter kernel (more about this shortly). Just as in the last chapter, it
needs to be *shifted*, *truncated*, and *windowed*. In this example, we will design
the filter kernel with *M* = 40, i.e., 41 points running from sample 0 to sample

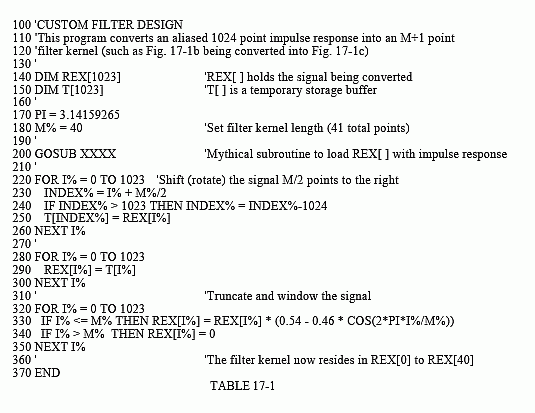

40. Table 17-1 shows a computer program that converts the signal in (b) into
the filter kernel shown in (c). As with the windowed-sinc filter, the points near
the ends of the filter kernel are so small that they appear to be zero when
plotted. Don't make the mistake of thinking they can be deleted!

The last step is to *test* the filter kernel. This is done by taking the DFT (using
the FFT) to find the actual frequency response, as shown in (d). To obtain
better resolution in the frequency domain, pad the filter kernel with zeros before
the FFT. For instance, using 1024 total samples (41 in the filter kernel, plus 983
zeros), results in 513 samples between 0 and 0.5.

As shown in Fig. 17-2, the length of the filter kernel determines how well the
*actual* frequency response matches the *desired* frequency response. The
exceptional performance of FIR digital filters is apparent; virtually any
frequency response can be obtained if a long enough filter kernel is used.

This is the entire design method; however, there is a subtle *theoretical* issue that
needs to be clarified. Why isn't it possible to directly use the impulse response
shown in 17-1b as the filter kernel? After all, if (a) is the Fourier transform of
(b), wouldn't convolving an input signal with (b) produce the *exact* frequency
response we want? The answer is *no*, and here's why.

When designing a custom filter, the desired frequency response is defined by
the values in an array. Now consider this: what does the frequency response
do *between* the specified points? For simplicity, two cases can be imagined,
one "good" and one "bad." In the "good" case, the frequency response is a
smooth curve between the defined samples. In the "bad" case, there are wild
fluctuations between. As luck would have it, the impulse response in (b)
corresponds to the "bad" frequency response. This can be shown by padding it
with a large number of zeros, and then taking the DFT. The frequency response
obtained by this method will show the erratic behavior between the originally
defined samples, and look just awful.

To understand this, imagine that we force the frequency response to be what we
want by defining it at an infinite number of points between 0 and 0.5. That is,
we create a continuous curve. The inverse DTFT is then used to find the
impulse response, which will be *infinite* in length. In other words, the "good"
frequency response corresponds to something that cannot be represented in a
computer, an infinitely long impulse response. When we represent the
frequency spectrum with *N*/2 samples, only *N* points are provided in the
time domain, making it unable to correctly contain the signal. The result is that
the infinitely long impulse response wraps up (aliases) into the *N* points. When
this aliasing occurs, the frequency response changes from "good" to "bad."
Fortunately, windowing the *N* point impulse response greatly reduces this
aliasing, providing a smooth curve between the frequency domain samples.

Designing a digital filter to produce a given frequency response is quite simple. The hard part is finding what frequency response to use. Let's look at some strategies used in DSP to design custom filters.
