Digital-to-Analog Conversion

In theory, the simplest method for digital-to-analog conversion is to pull the
samples from memory and convert them into an *impulse train*. This is

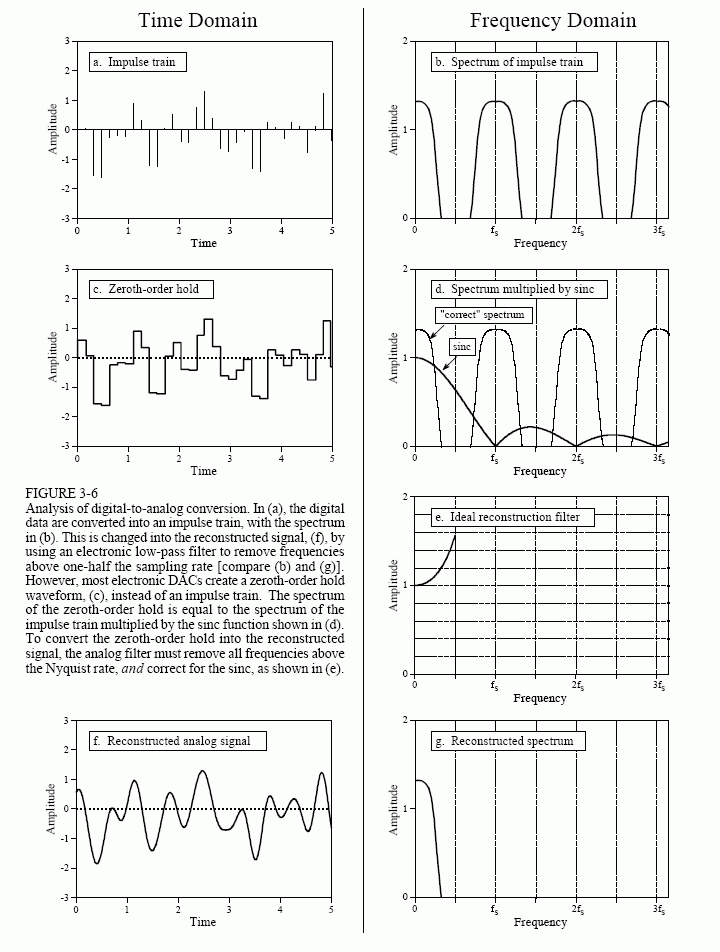

illustrated in Fig. 3-6a, with the corresponding frequency spectrum in (b). As just described, the original analog signal can be perfectly reconstructed by passing this impulse train through a low-pass filter, with the cutoff frequency equal to one-half of the sampling rate. In other words, the original signal and the impulse train have identical frequency spectra below the Nyquist frequency (one-half the sampling rate). At higher frequencies, the impulse train contains a duplication of this information, while the original analog signal contains nothing (assuming aliasing did not occur).

While this method is mathematically pure, it is difficult to generate the required narrow pulses in electronics. To get around this, nearly all DACs operate by holding the last value until another sample is received. This is called a zeroth-order hold, the DAC equivalent of the sample-and-hold used during ADC. (A first-order hold is straight lines between the points, a second-order hold uses parabolas, etc.). The zeroth-order hold produces the staircase appearance shown in (c).

In the frequency domain, the zeroth-order hold results in the spectrum of the
impulse train being *multiplied* by the dark curve shown in (d), given by the
equation:

This is of the general form: *sin(πx)/(πx)*, called the sinc function or sinc(x).
The sinc function is very common in DSP, and will be discussed in more detail
in later chapters. If you already have a background in this material, the zeroth-order hold can be understood as the convolution of the impulse train with a
rectangular pulse, having a width equal to the sampling period. This results in
the frequency domain being *multiplied* by the Fourier transform of the
rectangular pulse, i.e., the sinc function. In Fig. (d), the light line shows the
frequency spectrum of the impulse train (the "correct" spectrum), while the dark
line shown the sinc. The frequency spectrum of the zeroth order hold signal is
equal to the product of these two curves.

The analog filter used to convert the zeroth-order hold signal, (c), into the
reconstructed signal, (f), needs to do two things: (1) remove all frequencies
above one-half of the sampling rate, and (2) boost the frequencies by the
reciprocal of the zeroth-order hold's effect, i.e., *1/sinc(x)*. This amounts to an
amplification of about 36% at one-half of the sampling frequency. Figure (e)
shows the ideal frequency response of this analog filter.

This *1/sinc(x)* frequency boost can be handled in four ways: (1) ignore it and
accept the consequences, (2) design an analog filter to include the *1/sinc(x)*

response, (3) use a fancy *multirate* technique described later in this chapter, or
(4) make the correction in software before the DAC (see Chapter 24).

Before leaving this section on sampling, we need to dispel a common myth
about analog versus digital signals. As this chapter has shown, the amount of
information carried in a digital signal is limited in two ways: First, the number
of bits per sample limits the resolution of the *dependent* variable. That is, small
changes in the signal's amplitude may be lost in the quantization noise. Second,
the sampling rate limits the resolution of the *independent variable*, i.e., closely
spaced events in the analog signal may be lost between the samples. This is

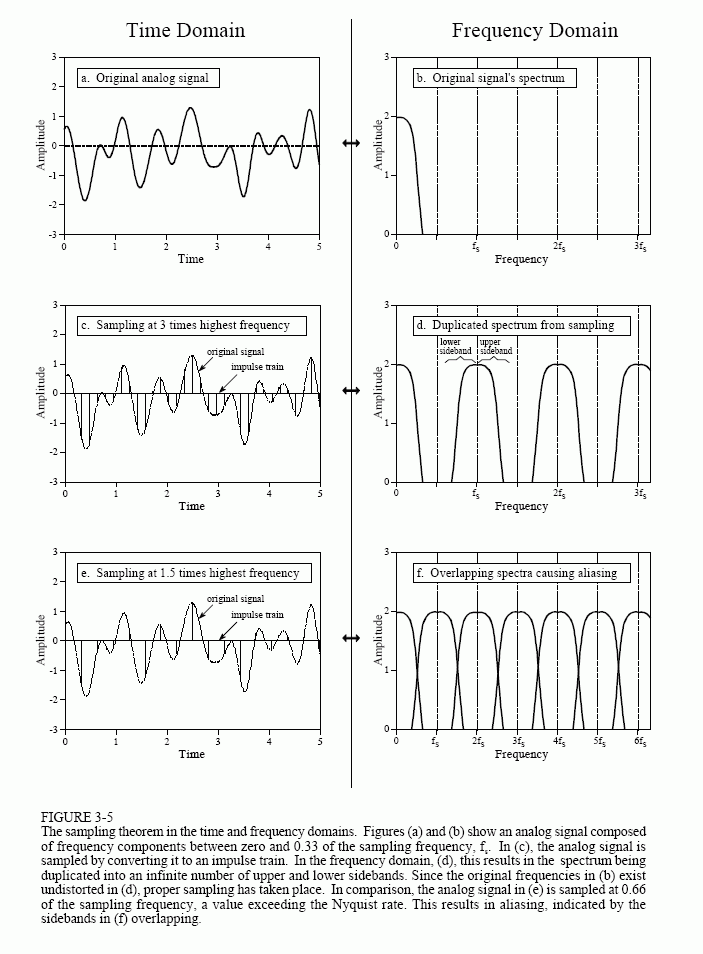

another way of saying that frequencies above one-half the sampling rate are
lost.

Here is the myth: "Since analog signals use continuous parameters, they have
infinitely good resolution in both the independent and the dependent variables."
Not true! Analog signals are limited by the same two problems as digital
signals: *noise* and *bandwidth* (the highest frequency allowed in the signal). The
noise in an analog signal limits the measurement of the waveform's amplitude,
just as quantization noise does in a digital signal. Likewise, the ability to
separate closely spaced events in an analog signal depends on the highest
frequency allowed in the waveform. To understand this, imagine an analog
signal containing two closely spaced pulses. If we place the signal through a
low-pass filter (removing the high frequencies), the pulses will blur into a single
blob. For instance, an analog signal formed from frequencies between DC and
10 kHz will have *exactly* the same resolution as a digital signal sampled at 20
kHz. It must, since the sampling theorem guarantees that the two contain the
same information.
