Solving in the Frequency Domain

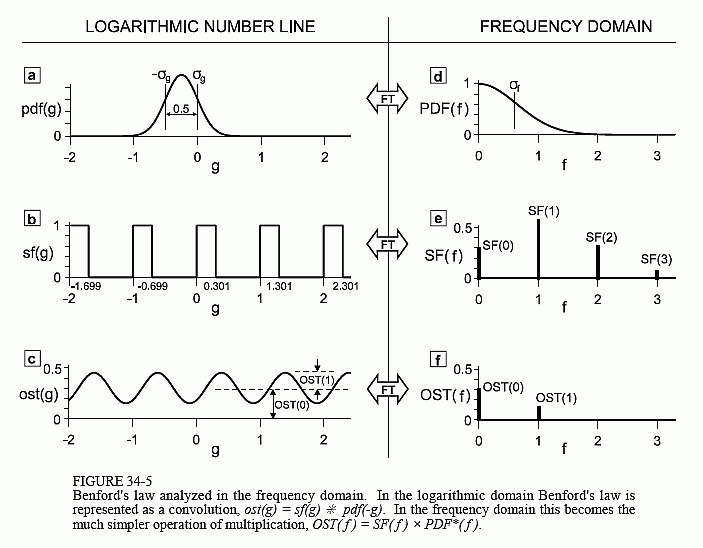

Figure 34-5 is what we have been working toward, a systematic way of
understanding the operation of Benford's law. The left three signals, the
**logarithmic domain**, are *pdf(g)*, *sf(g)* and *ost(g)*. The particular examples
in this figure are the same ones we used previously (i.e., Fig. 34-4).
These three signals are related by convolution (Eq. 34-3), a mathematical
operation that is not especially easy to deal with. To overcome this we
move the problem into the **frequency domain** by taking the Fourier
transform of each signal. Using standard DSP notation, we will represent
the Fourier transforms of *pdf(g)*, *sf(g)*, and *ost(g)*, as *PDF(f)*, *SF(f)*, and
*OST(f)*, respectively. These are shown on the right side of Fig. 34-5.

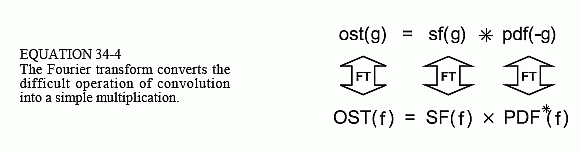

By moving the problem into the frequency domain we replace the difficult operation of convolution with the simple operation of multiplication. That is, the six signals in Fig. 34-5 are related as follows:

A small detail: The Fourier transform of *pdf(g)* is *PDF(f)*, while the
Fourier transform of *pdf(-g)* is *PDF*(f)*. The star in *PDF*(f)* means it is
the complex conjugate of *PDF(f)*, indicating that all of the phase values
are changed in sign. However, notice that Fig. 34-5 only shows the
magnitudes; we are completely ignoring the phases. The reason for this
is simple– the phase does not contain information we are interested in for
this particular problem. This makes it unimportant if we use *pdf(g)* vs.
*pdf(-g)*, or *PDF(f)* vs. *PDF*(f)*.

Notice how these signals represent the key components of Benford's law.
First, there is a group of numbers or a probability density function that
can generate a group of numbers. This is represented by *pdf(g)* and
*PDF(f)*. Second, we modify each number in this group or distribution by
taking its leading digit. This action is represented by convolving *pdf(g)*
with *sf(g)*, or by multiplying *PDF(f)* by *SF(f)*. Third, we observe that the
leading digits often have an unusual property. This unusual characteristic
is seen in *ost(g)* and *OST(f)*.

All six of these signals have specific characteristics that are fixed by the
definition of the problem. For instance, the value at f=0 in the frequency
domain always corresponds to the average value of the signal in the
logarithmic domain. In particular, this means that *PDF(0)* will always be
equal to one, since the area under *pdf(g)* is unity. In this example we are
using a Gaussian curve for *pdf(g)*. One of the interesting properties of the
Gaussian is that its Fourier Transform is also a Gaussian, one-sided in
this case, as shown in Fig. (d). These are related by σ_{f} = 1/(2πσ_{g}).

Since *sf(g)* is periodic with a period of one, *SF(f)* consists of a series of
spikes at f = 0, 1, 2, 3, ..., with all other values being zero. This is a
standard transform pair, given by Fig. 13-10 in chapter 13. The zeroth
spike, SF(0), is the average value of *sf(g)*. This is equal to the fraction of
the time that the signal is in the high state, or log(2) - log(1) = 0.301.
The remaining spikes have amplitudes: SF(1) = 0.516, SF(2) = 0.302,
SF(3) = 0.064, and so on, as calculated from the above reference.

Lastly we come to *ost(g)* and *OST(f)*. If Benford's law is being followed,
*ost(g)* will be a flat line with a value of 0.301. This corresponds to
OST(0) = 0.301, with all other values in *OST(f)* being zero. However, if
Benford's law is not being followed, then *ost(g)* will be periodic with a
period of one, as show in Fig. (c). Therefore, *OST(f)* will be a series of
spikes at f = 0, 1, 2, 3, ..., with the space between being zero.
