Quantization

First, a bit of trivia. As you know, it is a *digital* computer, not a *digit* computer.
The information processed is called *digital* data, not *digit* data. Why then, is
analog-to-digital conversion generally called: *digitize and digitization,* rather
than *digitalize and digitalization*? The answer is nothing you would expect.
When electronics got around to inventing digital techniques, the preferred
names had already been snatched up by the medical community nearly a century
before. * Digitalize* and *digitalization* mean to administer the heart stimulant
*digitalis*.

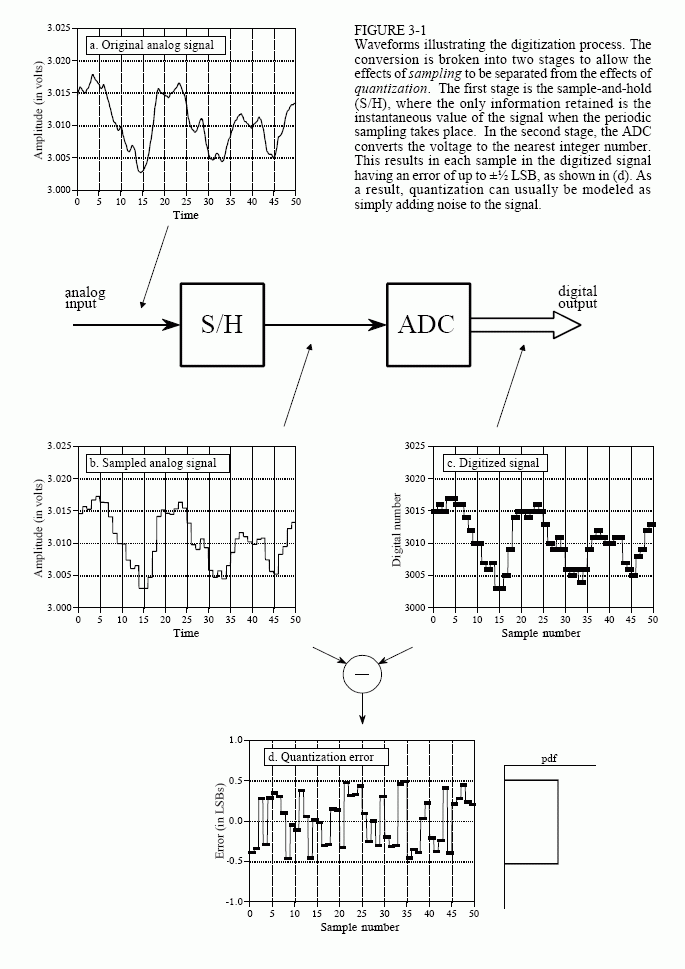

Figure 3-1 shows the electronic waveforms of a typical analog-to-digital
conversion. Figure (a) is the analog signal to be digitized. As shown by the
labels on the graph, this signal is a *voltage* that varies over *time*. To make the
numbers easier, we will assume that the voltage can vary from 0 to 4.095 volts,
corresponding to the digital numbers between 0 and 4095 that will be produced
by a 12 bit digitizer. Notice that the block diagram is broken into two sections,
the sample-and-hold (S/H), and the analog-to-digital converter (ADC). As you
probably learned in electronics classes, the sample-and-hold is required to keep
the voltage entering the ADC constant while the conversion is taking place.
However, this is *not* the reason it is shown here; breaking the digitization into
these two stages is an important theoretical model for understanding
digitization. The fact that it happens to look like common electronics is just a
fortunate bonus.

As shown by the difference between (a) and (b), the output of the sample-and-hold is allowed to change only at periodic intervals, at which time it is made
identical to the instantaneous value of the input signal. Changes in the input
signal that occur between these sampling times are completely ignored. That
is, sampling converts the *independent variable* (time in this example) from
continuous to discrete.

As shown by the difference between (b) and (c), the ADC produces an integer
value between 0 and 4095 for each of the flat regions in (b). This introduces an
error, since each plateau can be *any* voltage between 0 and 4.095 volts. For
example, both 2.56000 volts and 2.56001 volts will be converted into digital
number 2560. In other words, quantization converts the *dependent variable*
(voltage in this example) from continuous to discrete.

Notice that we carefully avoid comparing (a) and (c), as this would lump the sampling and quantization together. It is important that we analyze them separately because they degrade the signal in different ways, as well as being controlled by different parameters in the electronics. There are also cases where one is used without the other. For instance, sampling without quantization is used in switched capacitor filters.

First we will look at the effects of quantization. Any one sample in the digitized
signal can have a maximum error of ±? LSB (Least Significant Bit, jargon for
the distance between adjacent quantization levels). Figure (d) shows the
quantization error for this particular example, found by subtracting (b) from (c),
with the appropriate conversions. In other words, the digital output (c), is
equivalent to the continuous input (b), *plus* a quantization error (d). An
important feature of this analysis is that the quantization error appears very
much like *random noise*.

This sets the stage for an important model of quantization error. In most cases,
*quantization results in nothing more than the addition of a specific amount of
random noise to the signal*. The additive noise is uniformly distributed between
±? LSB, has a mean of zero, and a standard deviation of 1/√12 LSB (~0.29
LSB). For example, passing an analog signal through an 8 bit digitizer adds an
rms noise of: 0.29/256, or about 1/900 of the full scale value. A 12 bit
conversion adds a noise of: 0.29/4096 ≈ 1/14,000, while a 16 bit conversion
adds: 0.29/65536 ≈ 1/227,000. Since quantization error is a random noise, the
*number of bits* determines the *precision* of the data. For example, you might
make the statement: "We increased the precision of the measurement from 8 to
12 bits."

This model is extremely powerful, because the random noise generated by quantization will simply add to whatever noise is already present in the

analog signal. For example, imagine an analog signal with a maximum
amplitude of 1.0 volts, and a random noise of 1.0 millivolts rms. Digitizing this
signal to 8 bits results in 1.0 volts becoming digital number 255, and 1.0
millivolts becoming 0.255 LSB. As discussed in the last chapter, random noise
signals are combined by adding their *variances*. That is, the signals are added
in quadrature: √(A^{2} + B^{2}) = C. The total noise on the digitized signal is therefore
given by: √(0.255^{2} + 0.29^{2}) = 0.386 LSB. This is an increase of about 50% over
the noise already in the analog signal. Digitizing this same signal to 12 bits
would produce virtually no increase in the noise, and *nothing* would be lost due
to quantization. When faced with the decision of how many bits are needed in
a system, ask two questions: (1) How much noise is *already* present in the
analog signal? (2) How much noise can be *tolerated* in the digital signal?

When isn't this model of quantization valid? Only when the quantization error
cannot be treated as random. The only common occurrence of this is when the
analog signal remains at about the same value for many consecutive samples,

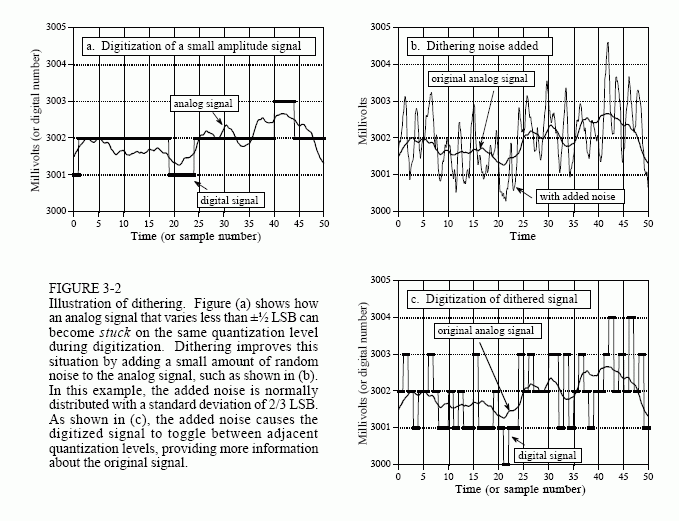

as is illustrated in Fig. 3-2a. The output remains *stuck* on the same digital
number for many samples in a row, even though the analog signal may be
changing up to +? LSB. Instead of being an additive random noise, the
quantization error now looks like a thresholding effect or weird distortion.

Dithering is a common technique for improving the digitization of these slowly varying signals. As shown in Fig. 3-2b, a small amount of random noise is added to the analog signal. In this example, the added noise is normally distributed with a standard deviation of 2/3 LSB, resulting in a peak-to-peak amplitude of about 3 LSB. Figure (c) shows how the addition of this dithering noise has affected the digitized signal. Even when the original analog signal is changing by less than ±? LSB, the added noise causes the digital output to randomly toggle between adjacent levels.

To understand how this improves the situation, imagine that the input signal is
a constant analog voltage of 3.0001 volts, making it one-tenth of the way
between the digital levels 3000 and 3001. Without dithering, taking 10,000
samples of this signal would produce 10,000 identical numbers, all having the
value of 3000. Next, repeat the thought experiment with a small amount of
dithering noise added. The 10,000 values will now oscillate between two (or
more) levels, with about 90% having a value of 3000, and 10% having a value
of 3001. Taking the average of all 10,000 values results in something close to
3000.1. Even though a single measurement has the inherent ±? LSB
limitation, the statistics of a large number of the samples can do much better.
This is quite a strange situation: * adding noise provides more information*.

Circuits for dithering can be quite sophisticated, such as using a computer to
generate random numbers, and then passing them through a DAC to produce the
added noise. After digitization, the computer can *subtract*

the random numbers from the digital signal using floating point arithmetic. This elegant technique is called subtractive dither, but is only used in the most elaborate systems. The simplest method, although not always possible, is to use the noise already present in the analog signal for dithering.
