Fourier Image Analysis

Fourier analysis is used in image processing in much the same way as with one-dimensional signals. However, images do not have their information encoded
in the frequency domain, making the techniques much less useful. For example,
when the Fourier transform is taken of an *audio* signal, the confusing time
domain waveform is converted into an easy to understand frequency spectrum.
In comparison, taking the Fourier transform of an image converts the
straightforward information in the spatial domain into a scrambled form in the
frequency domain. In short, don't expect the Fourier transform to help you
understand the information encoded in images.

Likewise, don't look to the frequency domain for filter design. The basic
feature in images is the edge, the line separating one *object* or *region* from
another *object* or *region*. Since an edge is composed of a wide range of
frequency components, trying to modify an image by manipulating the
frequency spectrum is generally not productive. Image filters are normally
designed in the spatial domain, where the information is encoded in its simplest
form. Think in terms of *smoothing* and *edge enhancement* operations (the spatial
domain) rather than *high-pass* and *low-pass* filters (the frequency domain).

In spite of this, Fourier image analysis does have several useful properties. For
instance, *convolution* in the spatial domain corresponds to *multiplication* in the
frequency domain. This is important because multiplication is a simpler
mathematical operation than convolution. As with one-dimensional signals, this
property enables FFT convolution and various deconvolution techniques.
Another useful property of the frequency domain is the *Fourier Slice Theorem*,
the relationship between an image and its projections (the image viewed from
its sides). This is the basis of *computed tomography*, an x-ray imaging
technique widely used medicine and industry.

The frequency spectrum of an image can be calculated in several ways, but the
FFT method presented here is the only one that is practical. The original image
must be composed of *N* rows by *N* columns, where *N* is a power of two, i.e.,
256, 512, 1024, etc. If the size of the original image is not a power of two,
pixels with a value of zero are added to make it the correct size. We will call
the two-dimensional array that holds the image the real array. In addition,
another array of the same size is needed, which we will call the imaginary
array.

The recipe for calculating the Fourier transform of an image is quite simple:
take the one-dimensional FFT of each of the rows, followed by the one-dimensional FFT of each of the columns. Specifically, start by taking the FFT
of the *N* pixel values in row 0 of the real array. The real part of the FFT's output
is placed back into row 0 of the real array, while the imaginary part of the FFT's
output is placed into row 0 of the imaginary array. After repeating this
procedure on rows 1 through *N*-1, both the real and imaginary arrays contain
an intermediate image. Next, the procedure is repeated on each of the *columns*
of the intermediate data. Take the *N* pixel values from column 0 of the real
array, *and* the *N* pixel values from column 0 of the imaginary array, and
calculate the FFT. The real part of the FFT's output is placed back into column
0 of the real array, while the imaginary part of the FFT's output is placed back
into column 0 of the imaginary array. After this is repeated on columns 1
through *N*-1, both arrays have been overwritten with the image's frequency
spectrum.

Since the vertical and horizontal directions are equivalent in an image, this algorithm can also be carried out by transforming the columns first and then transforming the rows. Regardless of the order used, the result is the same. From the way that the FFT keeps track of the data, the amplitudes of the low frequency components end up being at the corners of the two-dimensional spectrum, while the high frequencies are at the center. The inverse Fourier transform of an image is calculated by taking the inverse FFT of each row, followed by the inverse FFT of each column (or vice versa).

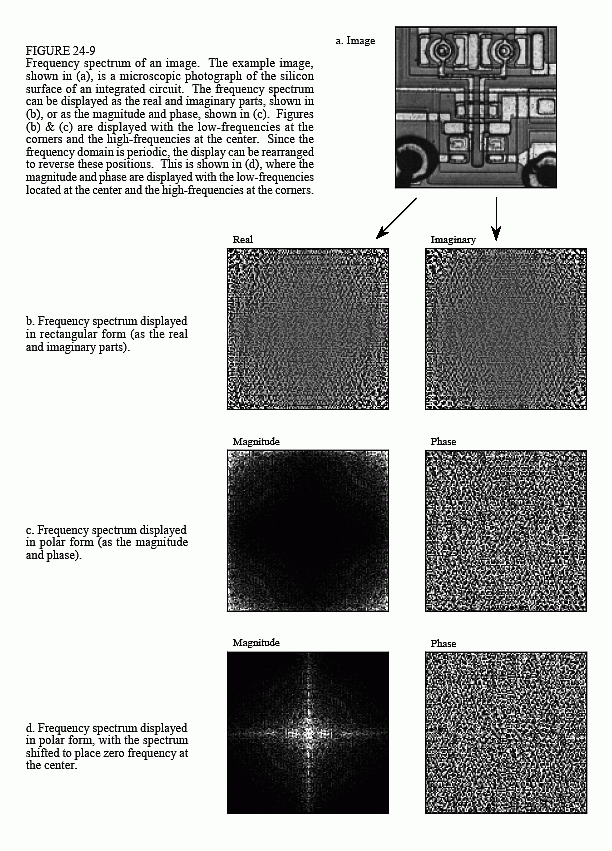

Figure 24-9 shows an example Fourier transform of an image. Figure (a) is the
original image, a microscopic view of the input stage of a 741 op amp
integrated circuit. Figure (b) shows the real and imaginary parts of the
frequency spectrum of this image. Since the frequency domain can contain
negative pixel values, the grayscale values of these images are offset such that
negative values are dark, zero is gray, and positive values are light. The low-frequency components in an image are normally much larger in amplitude than
the high-frequency components. This accounts for the very bright and dark
pixels at the four corners of (b). Other than this, the spectra of *typical* images
have no discernable order, appearing random. Of course, images can be
*contrived* to have any spectrum you desire.

As shown in (c), the polar form of an image spectrum is only slightly easier to understand. The low-frequencies in the magnitude have large positive values (the white corners), while the high-frequencies have small positive values (the black center). The phase looks the same at low and high-frequencies, appearing to run randomly between -π and π radians.

Figure (d) shows an alternative way of displaying an image spectrum. Since the
spatial domain contains a *discrete* signal, the frequency domain is *periodic*. In
other words, the frequency domain arrays are duplicated an infinite number of
times to the left, right, top and bottom. For instance, imagine a tile wall, with
each tile being the *N*×*N* magnitude shown in (c). Figure (d) is also an *N*×*N* section of this tile wall, but it straddles four tiles; the center of the image being
where the four tiles touch. In other words, (c) is the same image as (d), except
it has been shifted *N*/2 pixels horizontally (either left or right) and *N*/2 pixels
vertically (either up or down) in the periodic frequency spectrum. This brings
the bright pixels at the four corners of (c) together in the center of (d).

Figure 24-10 illustrates how the two-dimensional frequency domain is
organized (with the low-frequencies placed at the corners). Row *N*/2 and
column *N*/2 break the frequency spectrum into four quadrants. For the real part
and the magnitude, the upper-right quadrant is a mirror image of the lower-left,
while the upper-left is a mirror image of the lower-right. This symmetry also
holds for the imaginary part and the phase, except that the values of the
mirrored pixels are opposite in sign. In other words, every point in the
frequency spectrum has a matching point placed symmetrically on the other side
of the center of the image (row *N*/2 and column *N*/2). One of the points is the
*positive* frequency, while the other is the matching

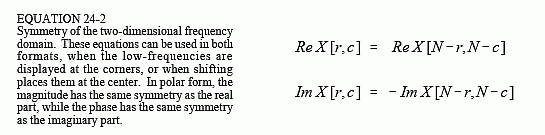

*negative* frequency, as discussed in Chapter 10 for one-dimensional signals. In
equation form, this symmetry is expressed as:

These equations take into account that the frequency spectrum is periodic,
repeating itself every *N* samples with indexes running from 0 to *N*-1. In other
words, *X*[*r*,*N]* should be interpreted as *X*[*r*,0], *X*[*N*,*c]* as *X*[0,*c*], and *X*[*N*,*N*]
as *X*[0,0]. This symmetry makes four points in the spectrum match with
*themselves*. These points are located at: [0,0], [0,*N*/2], [*N*/2,0] and [*N*/2,*N*/2].

Each pair of points in the frequency domain corresponds to a sinusoid in the
spatial domain. As shown in (a), the value at corresponds to the *zero
frequency* sinusoid in the spatial domain, i.e., the DC component of the image.
There is only one point shown in this figure, because this is one of the points
that is its own match. As shown in (b), (c), and (d), other pairs of points
correspond to two-dimensional sinusoids that look like waves on the ocean.
One-dimensional sinusoids have a *frequency*, *phase*, and *amplitude*. Two
dimensional sinusoids also have a *direction*.

The frequency and direction of each sinusoid is determined by the location of
the pair of points in the frequency domain. As shown, draw a line from each
point to the *zero frequency* location at the outside corner of the quadrant that the
point is in, i.e., [0,0], [0,*N*/2], [*N*/2,0] and [*N*/2,*N*/2] (as indicated by the circles in this figure). The direction of this line determines the direction of the spatial
sinusoid, while its length is proportional to the frequency of the wave. This
results in the low frequencies being positioned near the corners, and the high
frequencies near the center.

When the spectrum is displayed with zero frequency at the center ( Fig. 24-9d),
the line from each pair of points is drawn to the DC value at the *center* of the
image, i.e., [*N*/2,*N*/2]. This organization is simpler to understand and work
with, since all the lines are drawn to the same point. Another advantage of
placing zero at the center is that it matches the frequency spectra of *continuous*
images. When the spatial domain is continuous, the frequency domain is
*aperiodic*. This places zero frequency at the center, with the frequency
becoming higher in all directions out to infinity. In general, the frequency
spectra of discrete images are displayed with zero frequency at the center
whenever people will view the data, in textbooks, journal articles, and algorithm
documentation. However, most calculations are carried out with the computer
arrays storing data in the other format (low-frequencies at the corners). This is
because the FFT has this format.

Even with the FFT, the time required to calculate the Fourier transform is a
tremendous bottleneck in image processing. For example, the Fourier transform
of a 512×512 image requires several minutes on a personal computer. This is
roughly 10,000 times slower than needed for real time image processing, 30
frames per second. This long execution time results from the massive amount
of information contained in images. For comparison, there are about the same
number of *pixels* in a typical image, as there are *words* in this book. Image
processing via the frequency domain will become more popular as computers
become faster. This is a twenty-first century technology; watch it emerge!
