The Ones Scaling Test

Given a set of numbers, the simplest test for Benford's law is to count
how many of the numbers have 1 as the leading digit. This fraction will
be about 0.301 if Benford's law is being followed. However, even finding
this value exactly is not sufficient to conclude that the numbers are
obeying the law. For instance, the set might have 30.1% of the numbers
with a value of 1.00, and 69.9% with a value of 2.00. We can overcome
this problem by including a test for *scale invariance*. That is, we multiply
each number in the set by some constant, and then recounting how many
numbers have 1 as their leading digit. If Benford's law is truly being
followed, the percentage of numbers beginning with the digit 1 will
remain about 30.1%, regardless of the constant we use.

A computer program can make this procedure more systematic, such as
the example in Table 34-1. This program loops through the evaluation
696 times, with each loop multiplying all numbers in the group by 1.01.
On the first loop each of the original numbers will be multiplied by 1.01.
On the second loop each number will be multiplied by 1.01 again, in
addition to the multiplication that took place on the first loop. By the
time we reach the 80^{th} loop, each number will have been multiplied by
1.01 a total of 80 times. Therefore, the numbers on the 80th loop are the
same as multiplying each of the original numbers by 1.01^{80}, or 2.217. At
the completion of the program the numbers will have been multiplied 696
times, equivalent to multiplying the original numbers by a constant of
1.01^{696} ≈ 1,000. In other words, this computer program systematically
scales the data in small increments over about three orders of magnitude.

The fraction of numbers having 1 as the leading digit is tallied on each
of these 696 steps and stored in an array, which we will call the **Ones

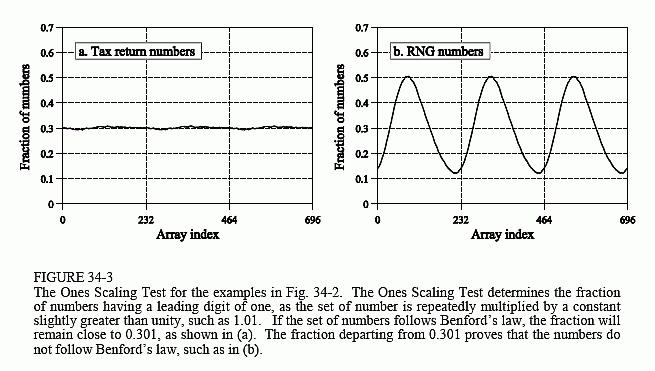

Scaling Test**. Figure 34-3 shows the values in this array for the two

examples in Fig. 34-2. As expected, the Ones Scaling Test for the income tax numbers is a relatively constant value around 30.1%, proving that it follows Benford's law very closely. As also expected, the Ones Scaling Test for the random number generator shows wild fluctuations, as high as 51% and as low as 12%.

An important point to notice in Fig. 34-3 is that the Ones Scaling Test is
periodic, repeating itself when the multiplication constant reaches a factor
of ten. In this example the period is 232 entries in the array, since 1.01^{232}
≈ 10. Say you start with the number 3.12345 and multiply it by 10 to get
31.2345. These two numbers, 3.12345 and 31.2345, are exactly the same
when you are only concerned with the leading digit, and the entire pattern
repeats.

Pay particular attention to the operations in lines 400 to 430 of Table 34- 1. This is where the program determines the leading digit of the number being evaluated. In line 310, one of the 10,000 numbers being tested is transferred to the variable: TESTX. The leading digit of TESTX, eventually held in the variable LD, is calculated in four steps. In line 400 we eliminate the sign of the number by taking the absolute value. Lines 410 and 420 repeatedly multiply or divide the number by a factor a ten, as needed, until the number is between 1 and 9.999999. For instance, line 410 tests the number for being less than 1. If it is, the number is multiplied by 10, and the line is repeated. When the number finally exceeds 1, the program moves to the next line. In line 430 we extract the integer portion of the number, which is the leading digit. Make sure you understand these steps; they are key to understanding what is really going on in Benford's law.
