Correlation

The concept of correlation can best be presented with an example. Figure 7-13
shows the key elements of a radar system. A specially designed antenna
transmits a short burst of radio wave energy in a selected direction. If the
propagating wave strikes an object, such as the helicopter in this illustration, a
small fraction of the energy is reflected back toward a radio receiver located
near the transmitter. The transmitted pulse is a specific shape that we have
selected, such as the triangle shown in this example. The received signal will
consist of two parts: (1) a shifted and scaled version of the transmitted pulse,
and (2) random noise, resulting from interfering radio waves, thermal noise in
the electronics, etc. Since radio signals travel at a known rate, the speed of
light, the shift between the transmitted and received pulse is a direct measure
of the distance to the object being detected. This is the problem: given a signal
of some known shape, what is the best way to determine where (or if) the signal
occurs in *another* signal. Correlation is the answer.

Correlation is a mathematical operation that is very similar to convolution. Just
as with convolution, correlation uses two signals to produce a third signal. This
third signal is called the cross-correlation of the two input signals. If a signal
is correlated with *itself*, the resulting signal is instead called the
autocorrelation. The convolution machine was presented in the last chapter to

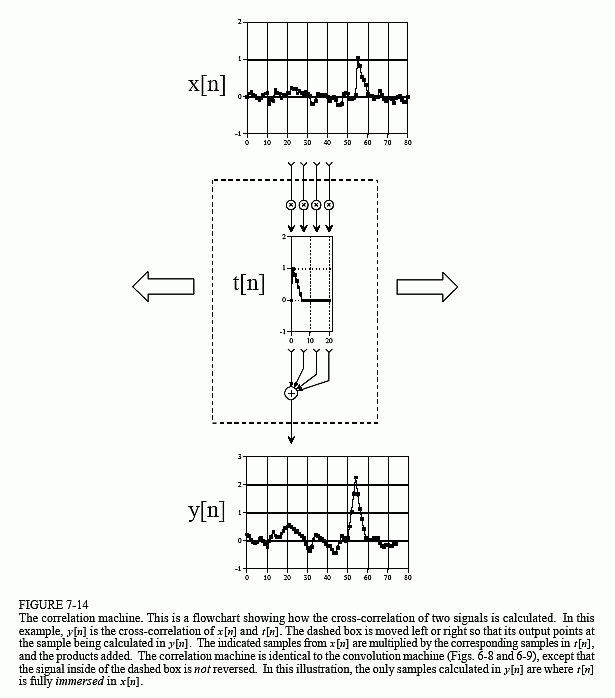

show how convolution is performed. Figure 7-14 is a similar

illustration of a correlation machine. The received signal, *x*[*n*], and the cross-correlation signal, *y*[*n*], are fixed on the page. The waveform we are looking for, *t*[*n*], commonly called the target signal, is contained *within* the correlation
machine. Each sample in *y*[*n*] is calculated by moving the correlation machine
left or right until it points to the sample being worked on. Next, the indicated
samples from the received signal fall into the correlation machine, and are
multiplied by the corresponding points in the target signal. The sum of these
products then moves into the proper sample in the cross-correlation signal.

The amplitude of each sample in the cross-correlation signal is a measure of
how much the received signal *resembles* the target signal, *at that location*. This
means that a peak will occur in the cross-correlation signal for every target
signal that is present in the received signal. In other words, the value of the
cross-correlation is maximized when the target signal is *aligned* with the same
features in the received signal.

What if the target signal contains samples with a negative value? Nothing changes. Imagine that the correlation machine is positioned such that the target signal is perfectly aligned with the matching waveform in the received signal. As samples from the received signal fall into the correlation machine, they are multiplied by their matching samples in the target signal. Neglecting noise, a positive sample will be multiplied by itself, resulting in a positive number. Likewise, a negative sample will be multiplied by itself, also resulting in a positive number. Even if the target signal is completely negative, the peak in the cross-correlation will still be positive.

If there is noise on the received signal, there will also be noise on the cross-correlation signal. It is an unavoidable fact that random noise looks a certain
amount like any target signal you can choose. The noise on the cross-correlation signal is simply measuring this similarity. Except for this noise, the
peak generated in the cross-correlation signal is symmetrical between its left
and right. This is true even if the target signal isn't symmetrical. In addition,
the width of the peak is twice the width of the target signal. Remember, the
cross-correlation is trying to *detect* the target signal, not *recreate* it. There is no
reason to expect that the peak will even look like the target signal.

Correlation is the *optimal* technique for detecting a known waveform in random
noise. That is, the peak is higher above the noise using correlation than can be
produced by any other linear system. (To be perfectly correct, it is only optimal
for *random white noise*). Using correlation to detect a known waveform is
frequently called matched filtering. More on this in Chapter 17.

The correlation machine and convolution machine are identical, except for one
small difference. As discussed in the last chapter, the signal inside of the
convolution machine is *flipped* left-for-right. This means that samples numbers: 1, 2, 3 … run from the right to the left. In the correlation machine this flip
doesn't take place, and the samples run in the normal direction.

Since this signal reversal is the only difference between the two operations, it
is possible to represent *correlation* using the same mathematics as *convolution*.
This requires *preflipping* one of the two signals being correlated, so that the left-for-right flip inherent in convolution is canceled. For instance, when *a*[*n*] and
*b*[*n*], are convolved to produce *c*[*n*], the equation is written: *a*[*n*] * *b*[*n*] = *c*[*n*].
In comparison, the cross-correlation of *a*[*n*] and *b*[*n*] can be written: *a*[*n*] * *b*[-*n*] = *c*[*n*]. That is, flipping *b*[*n*] left-for-right is accomplished by
reversing the sign of the index, i.e., *b*[-*n*].

Don't let the mathematical similarity between convolution and correlation fool you; they represent very different DSP procedures. Convolution is the relationship between a system's input signal, output signal, and impulse response. Correlation is a way to detect a known waveform in a noisy background. The similar mathematics is only a convenient coincidence.
