Strategy of the Windowed-Sinc

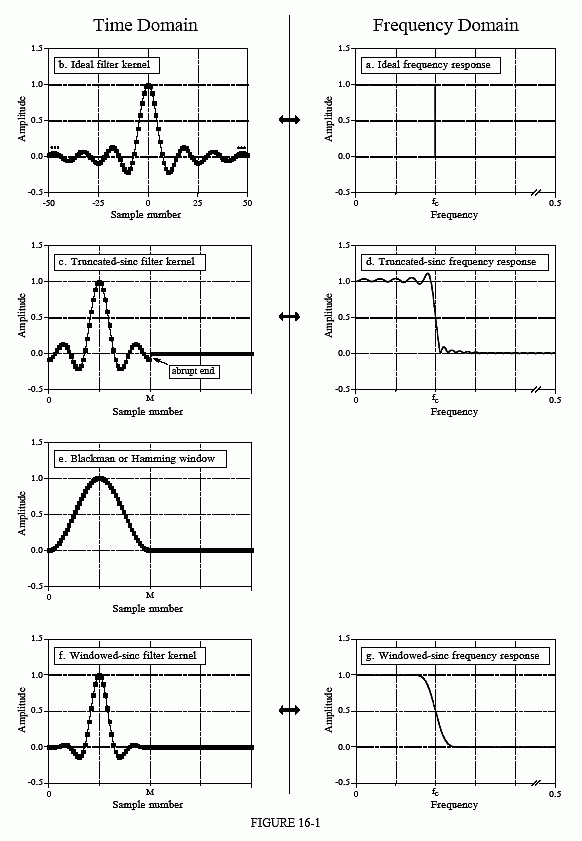

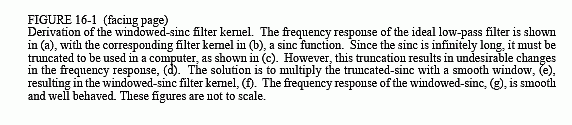

Figure 16-1 illustrates the idea behind the windowed-sinc filter. In (a), the
frequency response of the *ideal* low-pass filter is shown. All frequencies below
the cutoff frequency, *f _{c}*, are passed with unity amplitude, while all higher
frequencies are blocked. The passband is perfectly flat, the attenuation in the
stopband is infinite, and the transition between the two is infinitesimally small.

Taking the Inverse Fourier Transform of this ideal frequency response produces the ideal filter kernel (impulse response) shown in (b). As previously discussed (see Chapter 11, Eq. 11-4), this curve is of the general form: , called the sinc function, given by:

Convolving an input signal with this filter kernel provides a *perfect* low-pass
filter. The problem is, the sinc function continues to both negative and positive
infinity without dropping to zero amplitude. While this infinite length is not a
problem for *mathematics*, it is a show stopper for *computers*.

To get around this problem, we will make two modifications to the sinc function
in (b), resulting in the waveform shown in (c). First, it is truncated to *M* + 1
points, symmetrically chosen around the main lobe, where *M* is an even number.
All samples outside these *M* + 1 points are set to zero, or simply ignored.
Second, the entire sequence is shifted to the right so that it runs from 0 to *M*.
This allows the filter kernel to be represented using only *positive* indexes.
While many programming languages allow *negative* indexes, they are a
nuisance to use. The sole effect of this *M*/2 shift in the filter kernel is to shift
the output signal by the same amount.

Since the modified filter kernel is only an approximation to the ideal filter
kernel, it will not have an ideal frequency response. To find the frequency
response that is obtained, the Fourier transform can be taken of the signal in (c),
resulting in the curve in (d). It's a mess! There is excessive ripple in the
passband and poor attenuation in the stopband (recall the Gibbs effect discussed
in Chapter 11). These problems result from the abrupt discontinuity at the ends
of the truncated sinc function. Increasing the length of the filter kernel does not
reduce these problems; the discontinuity is significant no matter how long *M* is
made.

Fortunately, there is a simple method of improving this situation. Figure (e) shows a smoothly tapered curve called a Blackman window. Multiplying the truncated-sinc, (c), by the Blackman window, (e), results in the windowed-sinc filter kernel shown in (f). The idea is to reduce the abruptness of the truncated ends and thereby improve the frequency response. Figure (g) shows this improvement. The passband is now flat, and the stopband attenuation is so good it cannot be seen in this graph.

Several different windows are available, most of them named after their original developers in the 1950s. Only two are worth using, the Hamming window and the Blackman window These are given by:

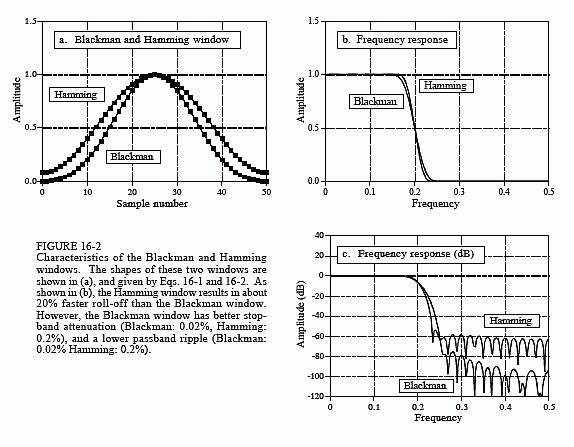

Figure 16-2a shows the shape of these two windows for (i.e., 51 total
points in the curves). Which of these two windows should you use? It's a
trade-off between parameters. As shown in Fig. 16-2b, the Hamming window
has about a 20% faster *roll-off* than the Blackman. However,

(c) shows that the Blackman has a better *stopband attenuation*. To be exact, the
stopband attenuation for the Blackman is -74dB (∼0.02%), while the Hamming
is only -53dB (∼0.2%). Although it cannot be seen in these graphs, the
Blackman has a *passband ripple* of only about 0.02%, while the Hamming is
typically 0.2%. In general, the Blackman should be your first choice; a slow
roll-off is easier to handle than poor stopband attenuation.

There are other windows you might hear about, although they fall short of the
Blackman and Hamming. The Bartlett window is a triangle, using straight
lines for the taper. The Hanning window, also called the raised cosine window,
is given by: . These two windows have about the
same roll-off speed as the Hamming, but worse stopband attenuation (Bartlett:
-25dB or 5.6%, Hanning -44dB or 0.63%). You might also hear of a
rectangular window. This is the same as *no* window, just a truncation of the
tails (such as in 16-1c). While the roll-off is ∼2.5 times faster than the
Blackman, the stopband attenuation is only -21dB (8.9%).
