Execution Speed: Programming Tips

While computer hardware and programming languages are important for
maximizing execution speed, they are not something you change on a day-to
day basis. In comparison, *how you program* can be changed at any time, and
will drastically affect how long the program will require to execute. Here are
three suggestions.

First, use integers instead of floating point variables whenever possible. Conventional microprocessors, such as used in personal computers, process integers 10 to 20 times faster than floating point numbers. On systems without a math coprocessor, the difference can be 200 to 1. An exception to this is integer division, which is often accomplished by converting the values into floating point. This makes the operation ghastly slow compared to other integer calculations. See Table 4-6 for details.

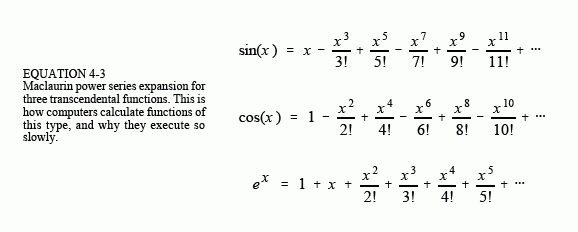

Second, avoid using functions such as: , etc. These transcendental functions are calculated as a series of additions, subtractions and multiplications. For example, the Maclaurin power series provides:

While these relations are infinite in length, the terms rapidly become small enough to be ignored. For example:

sin(1) = 1 - 0.166666 + 0.008333 - 0.000198 + 0.00002 - …

These functions require about ten times longer to calculate than a single
addition or multiplication (see Table 4-6). Several tricks can be used to bypass
these calculations, such as: *x3 = x·x·x*; *sin(x)≈x*, when *x* is very small; *sin(-x) = -sin(x)*, where you already know one of the values and need to find the
other, etc. Most languages only provide a few transcendental functions, and

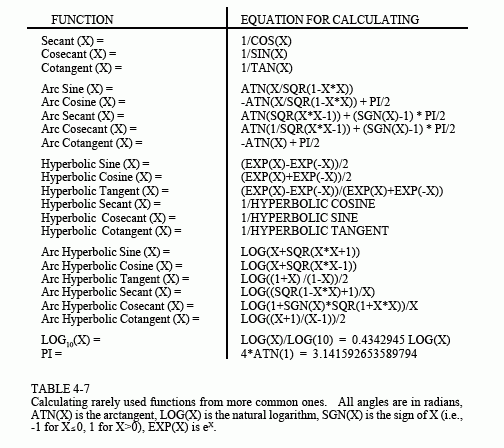

expect you to derive the others by means of the relations in Table 4-7. Not
surprisingly, these derived calculations are even slower.

Another option is to precalculate these slow functions, and store the values in
a look-up table (LUT). For example, imagine an 8 bit data acquisition system
used to continually monitor the *voltage* across a resistor. If the parameter of
interest is the *power *being dissipated in the resistor, the measured voltage can
be used to calculate: P=V^{2}/R. As a faster alternative, the power corresponding
to each of the possible 256 voltage measurements can be calculated beforehand, and stored in a LUT. When the
system is running, the measured voltage, a digital number between 0 and 255,
becomes an index in the LUT to find the corresponding power. Look-up tables
can be hundreds of times faster than direct calculation.

Third, learn what is *fast* and what is *slow* on your particular system. This
comes with experience and testing, and there will always be surprises. Pay
particular attention to *graphics* commands and *I/O*. There are usually several
ways to handle these requirements, and the speeds can be tremendously
different. For example, the BASIC command: *BLOAD*, transfers a data file
directly into a section of memory. Reading the same file into memory byte-by-byte (in a loop) can be 100 times as slow. As another example, the BASIC
command: *LINE,* can be used to draw a colored box on the video screen.
Drawing the same box pixel-by-pixel can also take 100 times as long. Even
putting a *print* statement within a loop (to keep track of what it is doing) can
slow the operation by *thousands*!
