Number Precision

The errors associated with number representation are very similar to
quantization errors during ADC. You *want* to store a continuous range of
values; however, you *can* represent only a finite number of quantized levels.
Every time a new number is generated, after a math calculation for example, it
must be rounded to the nearest value that can be stored in the format you are
using.

As an example, imagine that you allocate 32 bits to store a number. Since there
are exactly 2^{32} = 4,294,967,296 different bit patterns possible, you can represent
exactly 4,294,967,296 different numbers. Some programming languages allow
a variable called a long integer, stored as 32 bits, fixed point, two's
complement. This means that the 4,294,967,296 possible bit patterns represent
the integers between -2,147,483,648 and 2,147,483,647. In comparison, single
precision floating point spreads these 4,294,967,296 bit patterns over the much
larger range: -3.4 × 10^{38} to 3.4 ? 10^{38}.

With fixed point variables, the gaps between adjacent numbers are always
*exactly one*. In floating point notation, the gaps between adjacent numbers vary
over the represented number range. If we randomly pick a floating point
number, the gap next to that number is approximately *ten million times smaller*
than the number itself (to be exact, 2^{-24} to 2^{-23} times the number). This is a key
concept of floating point notation: large numbers have large gaps between them,

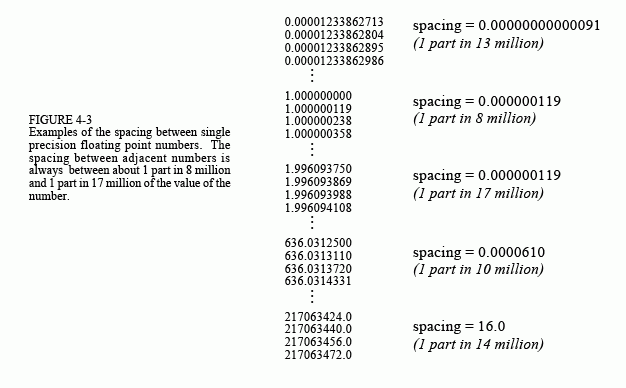

while small numbers have small gaps. Figure 4-3 illustrates this by showing
consecutive floating point numbers, and the gaps that separate them.

The program in Table 4-1 illustrates how round-off error (quantization error
in math calculations) causes problems in DSP. Within the program loop, two
random numbers are added to the floating point variable X, and then subtracted
back out again. Ideally, this should do *nothing*. In reality, the round-off error
from each of the arithmetic operations causes the value of X to gradually drift
away from its initial value. This drift can take one of two forms depending on
how the errors add together. If the round-off errors are randomly positive and
negative, the value of the variable will randomly increase and decrease. If the
errors are predominately of the same sign, the value of the variable will drift
away much more rapidly and uniformly.

Figure 4-4 shows how the variable, *X*, in this example program drifts in value.
An obvious concern is that *additive error* is much worse than *random error*.
This is because random errors tend to cancel with each other, while the additive
errors simply accumulate. The additive error is roughly equal to the round-off
error from a single operation, multiplied by the total number of operations. In
comparison, the random error only increases in proportion to the *square root* of
the number of operations. As shown by this example, additive error can be
hundreds of times worse than random error for common DSP algorithms.

Unfortunately, it is nearly impossible to control or predict which of these two
behaviors a particular algorithm will experience. For example, the program in
Table 4-1 generates an additive error. This can be changed to a random error
by merely making a slight modification to the numbers being added and
subtracted. In particular, the random error curve in Fig. 4-4 was generated by
defining: *A = EXP(RND)* and *B = EXP(RND)*, rather than: *A = RND* and *B = RND*. Instead of *A* and *B* being randomly distributed numbers between 0
and 1, they become exponentially distributed values between 1 and 2.718. Even
this small change is sufficient to toggle the mode of error accumulation.

Since we can't control which way the round-off errors accumulate, keep in mind
the worse case scenario. Expect that every single precision number will have
an error of about *one part in forty million, multiplied by the number of operations
it has been through*. This is based on the assumption of additive error, and the
average error from a single operation being one-quarter of a quantization level.
Through the same analysis, every double precision number has an error of about
*one part in forty quadrillion, multiplied by the number of operations.*

Table 4-2 illustrates a particularly annoying problem of round-off error. Each
of the two programs in this table perform the same task: printing 1001 numbers
equally spaced between 0 and 10. The left-hand program uses the floating point
variable, *X*, as the loop index. When instructed to execute a loop, the computer
begins by setting the index variable to the starting value of the loop (0 in this
example). At the end of each loop cycle, the step size (0.01 in the case) is
*added* to the index. A decision is then made: are more loops cycles required, or
is the loop completed? The loop ends when the computer finds that the value of
the index is *greater than* the termination value (in this example, 10.0). As
shown by the generated output, round-off error in the additions cause the value
of *X* to accumulate a significant discrepancy over the course of the loop. In fact,
the accumulated error *prevents* the execution of the last loop cycle. Instead of
*X* having a value of 10.0 on the last cycle, the error make the last value of *X*
equal to 10.000133. Since *X* is greater than the termination value, the computer
thinks its work is done, and the loop prematurely ends. This missing last value
is a common bug in many computer programs.

In comparison, the program on the right uses an integer variable, *I%*, to control
the loop. The addition, subtraction, or multiplication of two integers always
produces another integer. This means that fixed point notation has absolutely
no round-off error with these operations. Integers are ideal for controlling
loops, as well as other variables that undergo multiple mathematical operations.
The last loop cycle is guaranteed to execute! Unless you have some strong
motivation to do otherwise, always use integers for loop indexes and counters.

If you must use a floating point variable as a loop index, try to use fractions that
are a power of *two* (such as: 1/2, 1/4, 3/8, 27/16), instead of a power of *ten* (such
as: 0.1, 0.6, 1.4, 2.3, etc.). For instance, it would be better to use: FOR X = 1
TO 10 STEP 0.125, rather than: FOR X = 1 to 10 STEP 0.1. This allows the
index to always have an *exact* binary representation, thereby reducing round-off
error. For example, the decimal number: 1.125, can be represented exactly in
binary notation: 1.001000000000000000000000×2^{0}. In comparison, the
decimal number: 1.1, falls *between* two floating point numbers: 1.0999999046
and 1.1000000238 (in binary these numbers are:
1.00011001100110011001100?2^{0} and 1.00011001100110011001101?2^{0}). This
results in an inherent error each time 1.1 is encountered in a program.

A useful fact to remember: single precision floating point has an *exact* binary
representation for every whole number between +16.8 million (to be exact, ±2^{24}). Above this value, the gaps between the levels are larger than one,
causing some whole number values to be missed. This allows floating point
whole numbers (between ±16.8 million) to be added, subtracted and multiplied,
with no round-off error.
